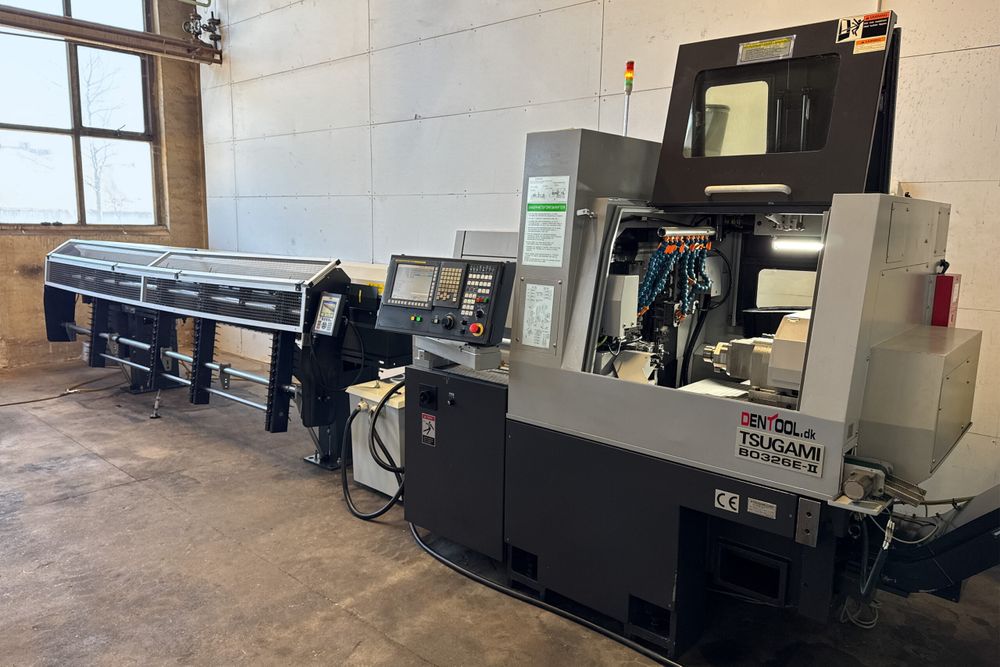

Tsugami Fanuc 32i-B control system 8000 rpm BO326E-II 6 Axis
Ref :
2795740-3-AW
Condition :
Used
Manufacturer :
Tsugami
Controller :
Fanuc 32i-B control system
Spindle Speed :
8000 rpm
Model :
BO326E-II
Nb Of Axis :
6 Axis
Year(s) :
2016
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Controlled axes: X1, X2, Z1, Z2, Y1, Y2
Maximum capacity: 32 mm
Maximum turning length with fixed guide bush: 320 mm
Maximum turning length with rotary guide bush: 70 mm
Maximum tapping capacity main spindle: M10
Maximum rotary drilling capacity: 12 mm
Spindle bore: 32 mm
Main spindle power: 3.7/5.5 kW
Sub spindle speed: 8000 rpm
Sub spindle power: 2.2/3.7 kW
Driven tools spindle speed: 6000 rpm
Driven tools power: 1 kW
Operation time: 6575 hours
Machine weight: 3500 kg
Machine dimensions: 2400 × 1500 × 2000 mm
