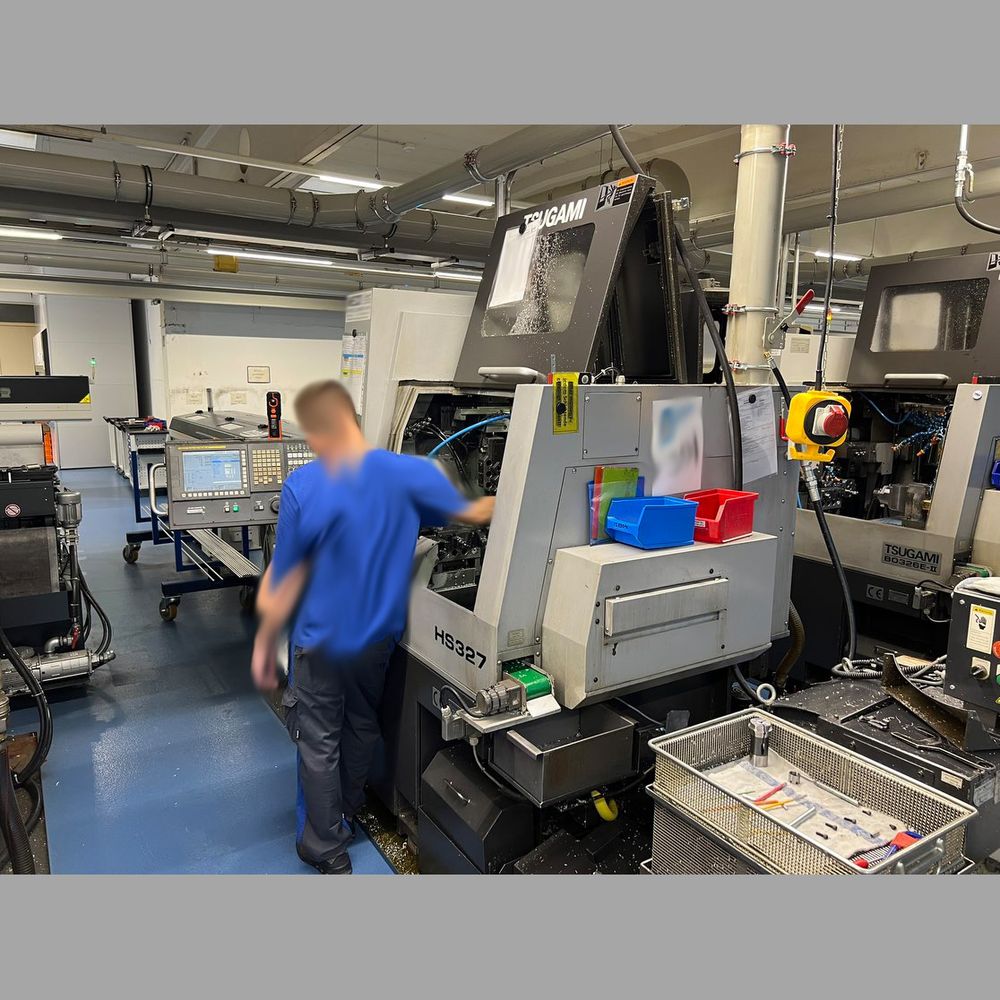

Tsugami Fanuc 32i MB 8000 1/min HS 327 3 Axis

Max. turning diameter: 32 mm
Max. turning length: 320 mm
Max. main spindle speed: 8000 1/min
Max. main spindle power at 10-40/100% duty ratio: 5.5/3.7 kW
Main spindle bore: 8–32 mm
Axis at main spindle unit: C
Headstock stroke main spindle: 320 mm
Max. opposed spindle speed: 8000 1/min
Max. opposed spindle power at 10-40/100% duty ratio: 3.7/2.2 kW
Axis at opposed spindle unit: C
Coolant through main spindle
Workpiece discharge unit in opposed spindle
Workpiece pusher in opposed spindle
Control: Fanuc 32i MB
Fully enclosed work area
Light in working area
Preparation for central oil/emulsion mist extraction
Chip conveyor
Machine operates/operated with oil
Coolant unit with paperband filter
High pressure pump
Automatic CO2 fire extinguishing system
Part outfeed conveyor
Bar loader/magazine
Tapping without compensation chuck
Circumference surface milling (C- and Z-axis interpolation)
Polygon milling
Warning lamp
Collet chuck: 1 set
Tool holder for turning tools: 1 set
Tool holder for driven tools: 1 set
Total power requirement: 21 kVA
Machine dimensions (LxWxH): 2150 x 1280 x 2010 mm
Machine weight: 3500 kg
Equipped with B-axis
Change over to short drilling possible
New coolant unit BÜCHELE SFB 300eco with 100 bar high pressure pump
Bar loader changed to TOP Automazioni NF 334SX in 2023
Driven guide bush
