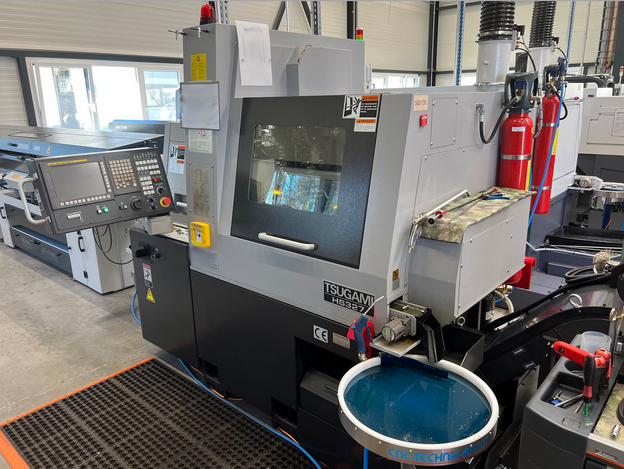

Tsugami Fanuc 32i MB 8000 1/min HS 327 9 Axis

X-Axis Travel: —
Y-Axis Travel: —
Z-Axis Travel: 320 mm (headstock stroke)
C-Axis: Yes (main spindle)
C-Axis (opposed spindle): Yes
9-Axis CNC Swiss-Type Lathe
Control: Fanuc 32i MB
Coolant Through Main Spindle: Yes
Workpiece Pusher (Opposed Spindle): Yes
Bar Capacity: 8–32 mm (spindle bore)

Main Spindle Speed: 8000 1/min
Main Spindle Power: 5.5 / 3.7 kW
Opposed Spindle Speed: 8000 1/min
Opposed Spindle Power: 3.7 / 2.2 kW
Spindle Bore: 8–32 mm

Bar Loader: FMB Turbo 3-36 HD
Chip Conveyor: Yes
Coolant System: BÜCHELE SFB-310 ECO
High Pressure Pump: 16 bar
Fire Suppression System: CO2 (Kraft & Bauer FB 703)
Fully Enclosed Work Area
Working Area Lighting
Oil-Based Operation
Part Outfeed Conveyor
Warning Lamp
Preparation for Central Mist/Oil Extraction

Collet Chuck Set
Tool Holder Set (Turning Tools)
Tool Holder Set (Driven Tools)

Power Requirement: 21 kVA
Machine Dimensions: 2150 × 1280 × 2010 mm
Machine Weight: 3600 kg
