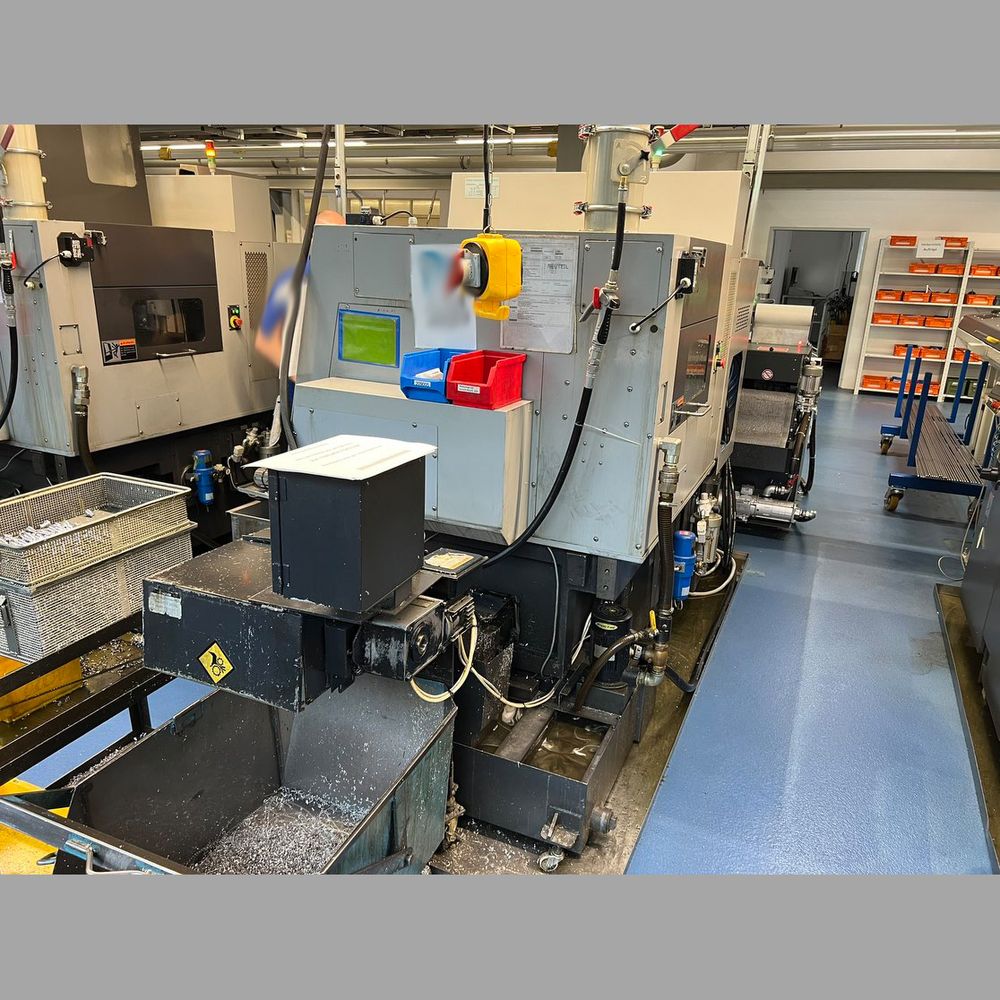

Tsugami Fanuc 32i MB 8000 rpm BO326E-II 3 Axis

C axis main spindle
C axis opposed spindle
Headstock stroke main spindle: 320 mm
Control: Fanuc 32i MB
Maximum turning diameter: 32 mm
Maximum turning length: 320 mm
Spindle bore main spindle: 8 – 32 mm
Main spindle speed: 8000 rpm
Main spindle motor power: 5.5 / 3.7 kW
Opposed spindle speed: 8000 rpm
Opposed spindle motor power: 3.7 / 2.2 kW
Coolant through main spindle
Workpiece discharge unit in opposed spindle
Workpiece pusher in opposed spindle
Total power requirement: 21 kVA
Machine dimensions: 2150 × 1280 × 2010 mm
Machine weight: 3500 kg
Fully enclosed work area
Work area lighting
Preparation for central oil or emulsion mist extraction
Chip conveyor
Coolant unit with paper band filter
High pressure pump
Automatic CO2 fire extinguishing system
Part outfeed conveyor
Bar loader magazine
Tapping without compensation chuck
Circumference surface milling with C and Z axis interpolation
Polygon milling
Warning lamp
Collet chuck set
Tool holders for turning tools
Tool holders for driven tools
Driven guide bush
Coolant unit BÜCHELE SFB 300eco with paper band filter
100 bar high pressure pump
Bar loader TOP Automazioni NF 334SX
