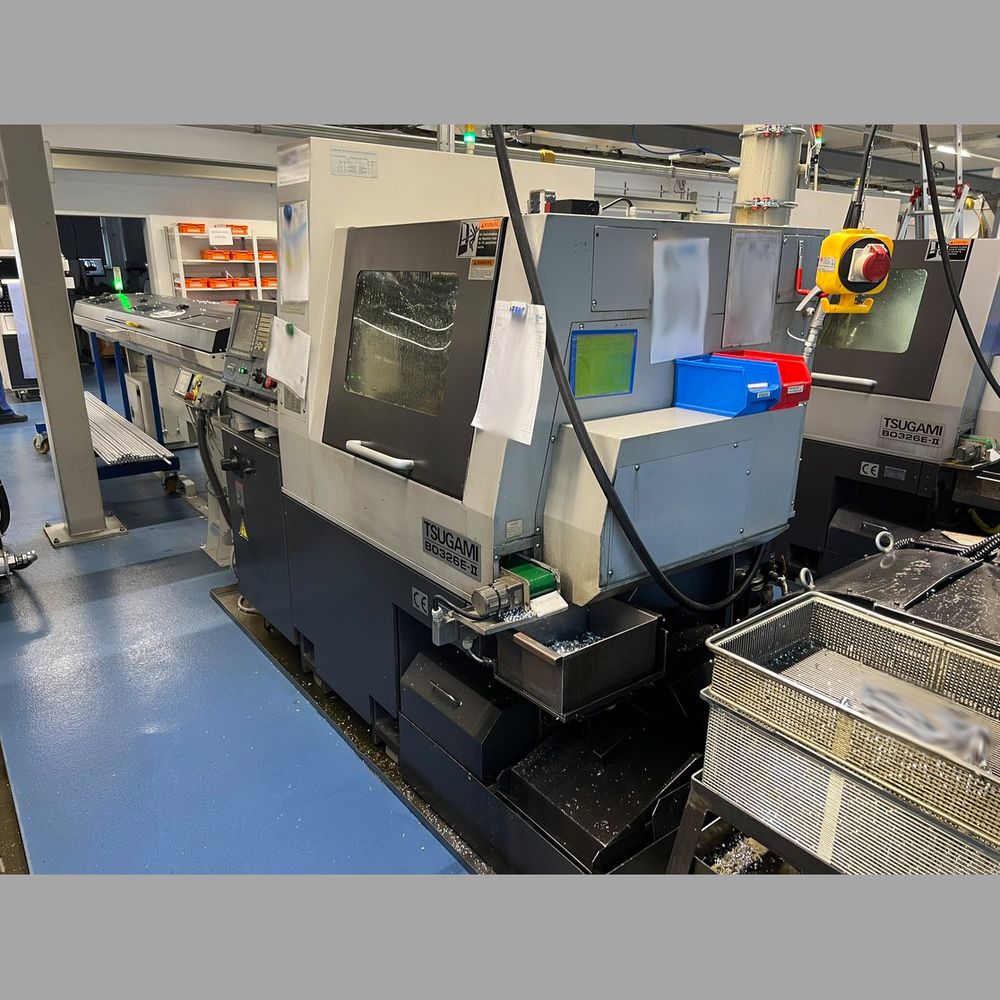

Tsugami Fanuc 32i MB 8000 rpm BO326E-II 8 Axis

8 Axis
C-Axis Main Spindle
C-Axis Opposed Spindle
Control: Fanuc 32i MB
Max Turning Diameter: 32 mm
Max Turning Length: 320 mm
Main Spindle Speed: 8000 rpm
Main Spindle Power: 5.5 / 3.7 kW
Main Spindle Bore: 8–32 mm
Headstock Stroke: 320 mm
Opposed Spindle Speed: 8000 rpm
Opposed Spindle Power: 3.7 / 2.2 kW
Coolant Through Main Spindle
Circumference Surface Milling (C and Z Axis Interpolation)
Polygon Milling
Bar Loader / Magazine
Driven Guide Bush
Collet Chuck Set
Tool Holder Set For Turning Tools
Tool Holder Set For Driven Tools
Fully Enclosed Work Area
Work Area Light
Preparation For Central Oil / Emulsion Mist Extraction
Chip Conveyor
Coolant Unit With Paper Band Filter
High Pressure Pump: 100 bar
Automatic CO2 Fire Extinguishing System
Part Outfeed Conveyor
Workpiece Discharge Unit In Opposed Spindle
Workpiece Pusher In Opposed Spindle
Tapping Without Compensation Chuck
Warning Lamp
Total Power Requirement: 21 kVA
Machine Dimensions: 2150 × 1280 × 2010 mm
Machine Weight: 3500 kg
