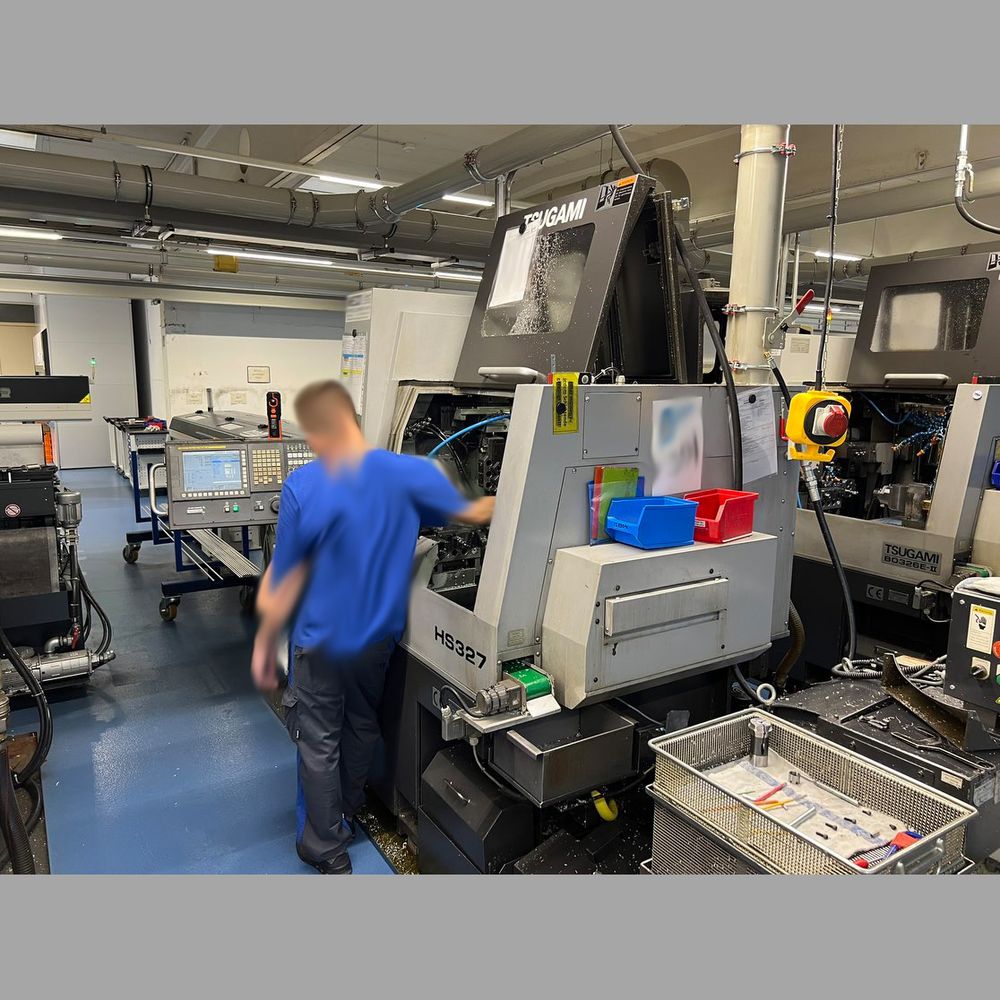

Tsugami Fanuc 32i MB control 8000 rpm HS 327 3Axis

X/Y/Z axis travel 320 mm
Maximum turning diameter 32 mm
Maximum turning length 320 mm
C axis at main spindle unit
Headstock stroke main spindle 320 mm
Maximum speed main spindle 8000 rpm
Main spindle power 5.5/3.7 kW (10-40/100% duty)
Spindle bore main spindle 8-32 mm
Maximum speed opposed spindle 8000 rpm
Opposed spindle power 3.7/2.2 kW (10-40/100% duty)
C axis at opposed spindle unit
Fanuc 32i MB control
Fully enclosed work area
Light in working area
Preparation for central oil-/emulsion mist extraction unit
Chip conveyor
Coolant unit with paperband filter
High pressure pump
Automatic CO2-fire extinguishing system
Part outfeed conveyor
Bar loader/magazine
Tapping without compensation chuck
Circumference surface milling (C- and Z-axis interpolation)
Polygon milling
Warning lamp
1 set Collet chuck
1 set Tool holder for turning tools
1 set Tool holder for driven tools
Total power requirement 21 kVA
Machine dimensions 2150 x 1280 x 2010 mm
Machine weight 3500 kg
Equipped with new coolant unit BÜCHELE SFB 300eco and FMB bar loader changed to TOP Automatzioni NF 334SX in 2023
Change over to short drilling possible
Driven guide bush
Includes B-axis
