Tsugami Fanuc 32i Model B Variable Speed S206 2 Axis

Controlled axes: X1
Controlled axes: X2
Controlled axes: Y1
Controlled axes: Y2
Controlled axes: Z1
Controlled axes: Z2
C axis capability
Y axis capability
Control: Fanuc 32i Model B
MPG handwheel control
Guide bushing capability
Chucker capability
Back spindle
Main and back spindle synchronization
Maximum bar capacity: 20 mm
Maximum turning diameter: 20 mm
Maximum turning length: 250 mm
Maximum turning length with gripping unit: 210 mm
Main spindle drilling diameter: 10 mm
Main spindle tapping capacity: M8
Back spindle chucking diameter: 20 mm
Back spindle drilling diameter: 8 mm
Back spindle tapping capacity: M6
Cross drilling diameter: 7 mm ER11
Cross drilling diameter: 10 mm ER16
Cross tapping capacity: M5
Tool spindle slotting cutter diameter: 30 mm
Tool spindle drilling diameter: 8 mm
Back tapping capacity: M5
Live tools capability
High speed rapid traverse: 944 IPM
Maximum tool positions: 25

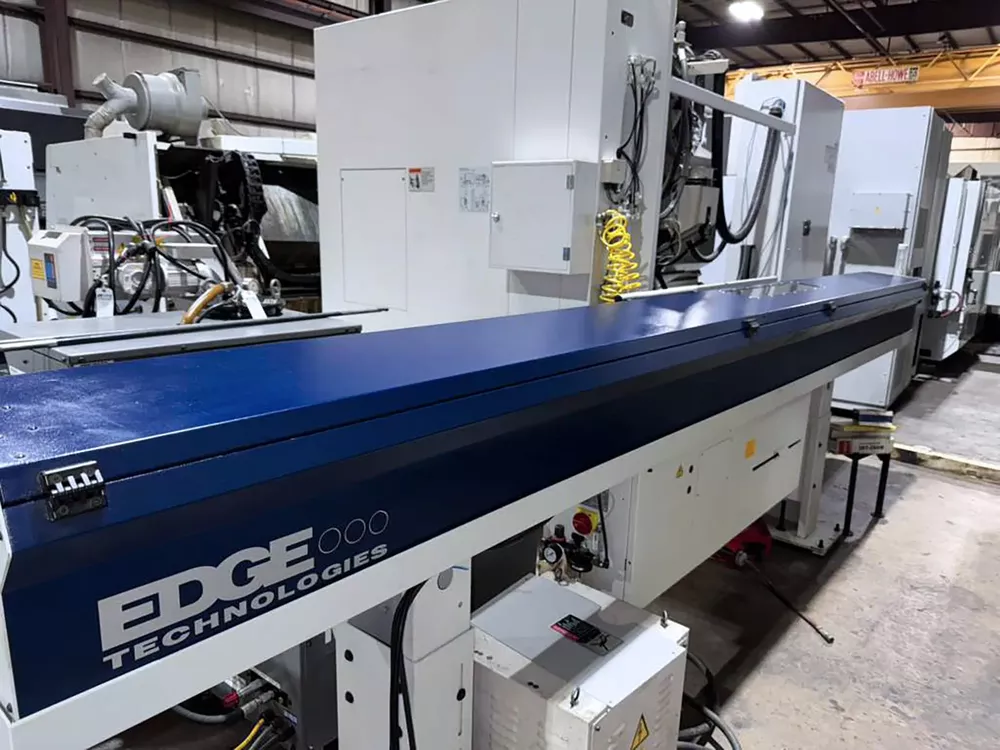

Bar feeder: Edge Minuteman 320 SE
