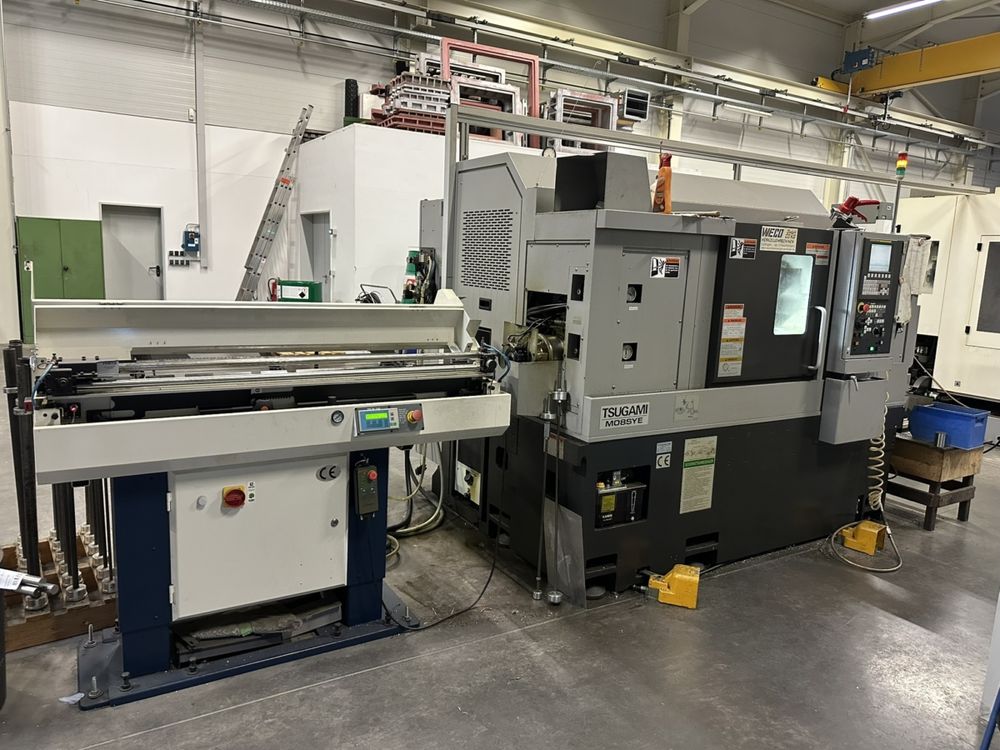

Tsugami Fanuc Oi-TD 4500 rpm M08SYE 5 Axis

X-axis travel: 211 mm
Z-axis travel: 400 mm
Y-axis travel: ±50 mm
A-axis travel (sub-spindle): 506 mm
C-axis resolution: 0.001°

Rapid traverse X-axis: 24 m/min
Rapid traverse Z-axis: 27 m/min
Rapid traverse Y-axis: 12 m/min
Rapid traverse A-axis: 27 m/min

CNC control: Fanuc Oi-TD
Number of controlled axes: 6
Simultaneously controlled axes: 4

Maximum turning diameter: 170 mm
Maximum turning length: 330 mm
Bar capacity: 65 mm

Main spindle speed: 4500 rpm
Main spindle motor power: 7.5 / 11 kW
Main spindle nose: A2-6
Main spindle bearing diameter: 100 mm

Sub-spindle speed: 4500 rpm
Sub-spindle motor power: 5.5 / 7.5 kW
Sub-spindle bearing diameter: 100 mm
Sub-spindle C-axis resolution: 0.001°
Sub-spindle flushing system
Integrated pneumatic parts ejector

Driven tool maximum speed: 5000 rpm
Driven tool motor power: 1.5 / 3.7 kW
Maximum drilling diameter: 13 mm
Maximum tapping size: M8

Turret stations: 12
Tool shank size: 25 x 25 mm
Maximum internal machining diameter: 40 mm

Total connected load: 27 kVA
Machine length without chip conveyor: 2690 mm
Machine width without chip conveyor: 1865 mm
Machine height: 1900 mm
Machine weight: 6000 kg

Main spindle and sub-spindle configuration
Y-axis machining capability
Driven tools
Bar feeder
Chip conveyor
Collets
Tool holders
