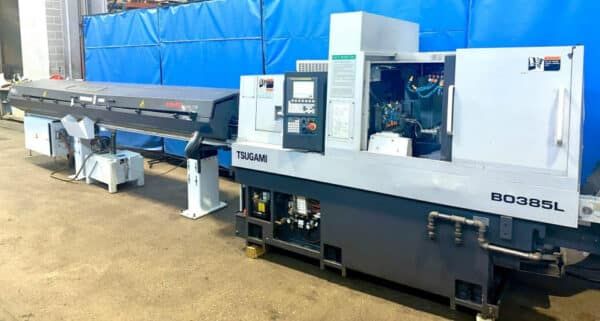

Tsugami Fanuc Oi-TD CNC 6000 rpm B0385L 6 Axis

Axes Z1
Axes X1
Axes YZ
Axes X2
Axes Z2
C-axis main spindle
C-axis back spindle
Control Fanuc Oi-TD CNC
High pressure coolant system 1000 PSI
Chip conveyor
Bar feeder FMB Turbo 3-38
Bar feeder capacity 144 in × 1.5 in
Bar capacity 38 mm
Max machining length 3.93 in
Main spindle speed 6000 rpm
Main spindle motor 14.8 hp
Back spindle speed 7000 rpm
Back spindle motor 7.4 hp
Live tool speed 5000 rpm
Max drilling diameter 0.5118 in
Total tool capacity 23 positions
Total live tool capacity 5 positions
Gang slide tool positions 8
Back work tool post positions 5
Front work tool post positions 5
Optional front drill holder 5 positions
Optional AR16 cross tool spindle rear drive
Capacity for 31 optional tools
Machine dimensions 99.2 × 52.95 × 77.56 in
Machine weight 10120 lb
