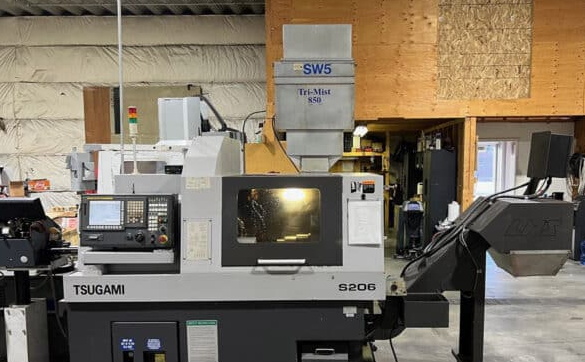

Tsugami Fanuc Series 32i-Model B control 10,000 rpm S206 3 Axis

Maximum machining length 210 mm (direct-drive rotary guide bushing)
Maximum machining length 250 mm (static guide bushing)
Maximum machining length 80 mm (carrier type rotary guide bushing)
Maximum machining length 45 mm (guide bushless)
Sub spindle chucking diameter 20 mm
Sub spindle drilling diameter 8 mm
Sub spindle tapping M6

C-axis main spindle
C-axis sub spindle

Fanuc Series 32i-Model B control
Rotary guide bushing
Live tools on front tool post
Live tools on rear tool post
Back working live tools for Y2
High pressure unit outlet 2000 PSI
Fire suppression system
Mist collector
Chip conveyor
Chucking bar stock diameter 3–20 mm

Main spindle speed 200–10,000 rpm
Sub spindle speed 200–10,000 rpm
Main spindle motor 2.2 / 3.7 kW

Live tool speed 8,000 rpm
Maximum tool spindle drilling diameter 6 mm (front/back tool post)
Maximum tool spindle drilling diameter 8 mm (rear tool post)
Maximum tool spindle tapping M5 (front/back tool post)
Maximum tool spindle tapping M6 (rear tool post)

12 ft magazine bar loader
LNS Turbo chip conveyor
Tri Mist mist collector
