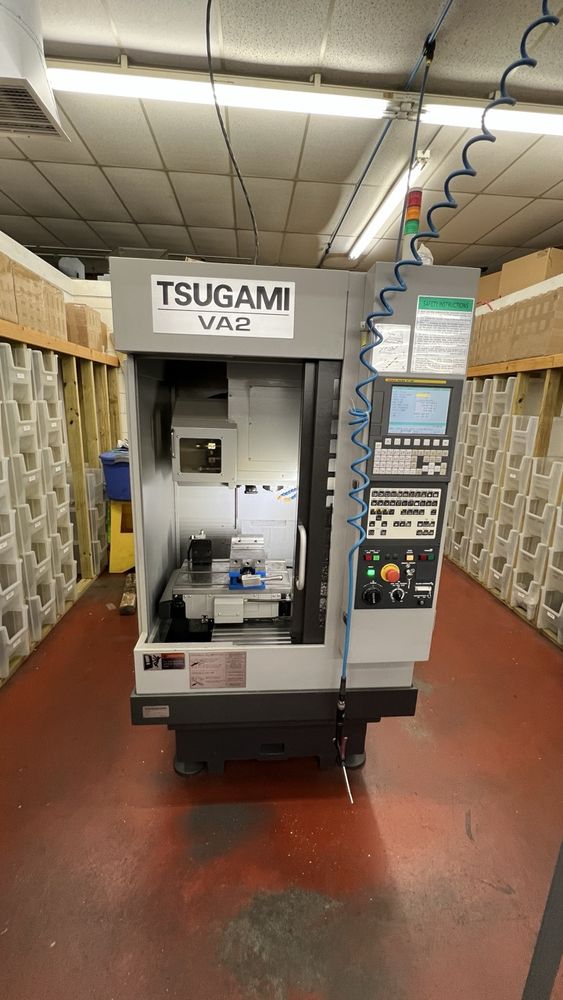

Tsugami VA 2 3 Axis

X-Axis Travel: 16.14″
Y-Axis Travel: 12.6″
Z-Axis Travel: 13.78″
Rapid Traverse (X/Y/Z): 1,417 ipm
Cutting Feed Rate: 394 ipm
Positioning Accuracy: ±0.0002″
Repeatability: ±0.00008″
Spindle Taper: BT30
Spindle Speed: 12,000 RPM
Spindle Power: 7.5 HP
Table Size: 23.6″ x 12.6″
Spindle Nose to Table: 5.9″ – 19.7″
Max Table Load: 330 lbs
Tool Storage Capacity: 14
Dimensions: 80″ x 64″ x 87″
Weight: 3,968 lbs
Electrical Requirements: 200V/3 Phase/50Hz
Tool Setter
