TP-HRW 5 TUNNEL PASTEURIZER
Ref :
2792245-7-FM
Condition :
Used
Manufacturer :
-
Model :
TP-HRW 5
Short Description :
TUNNEL PASTEURIZER
Year(s) :
2016
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
23 Jun. 2026

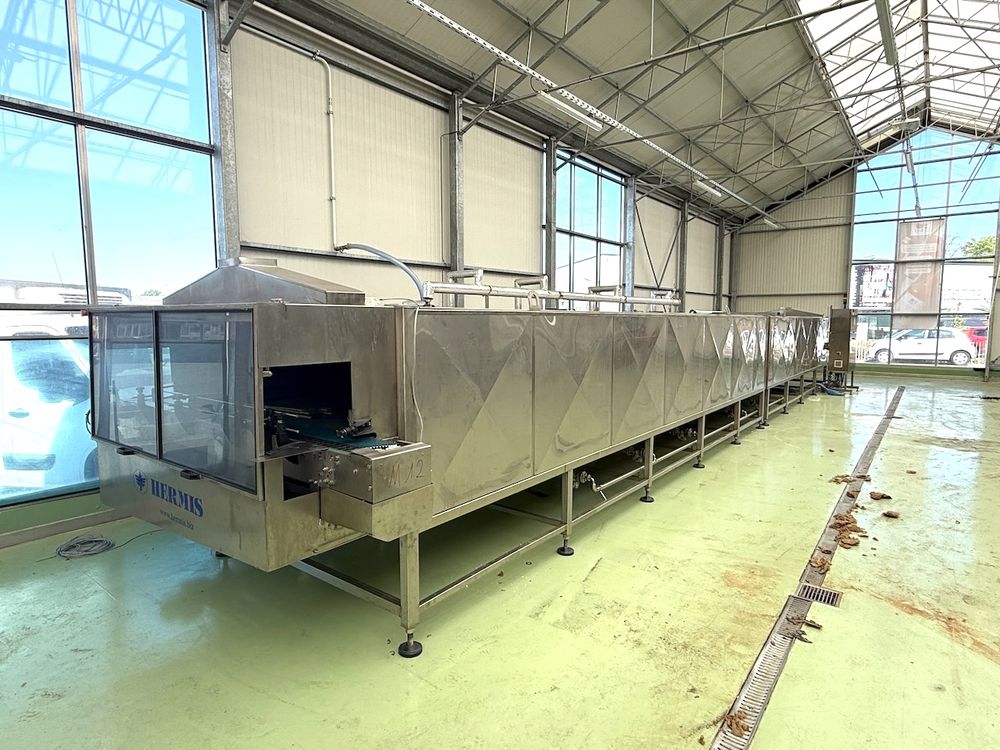

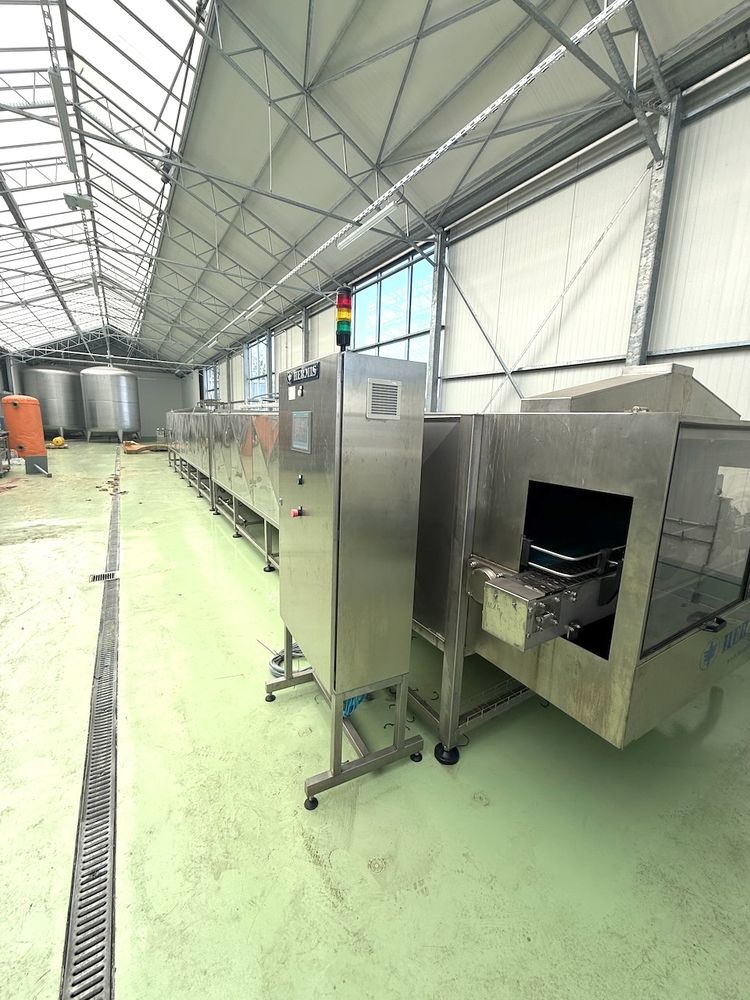

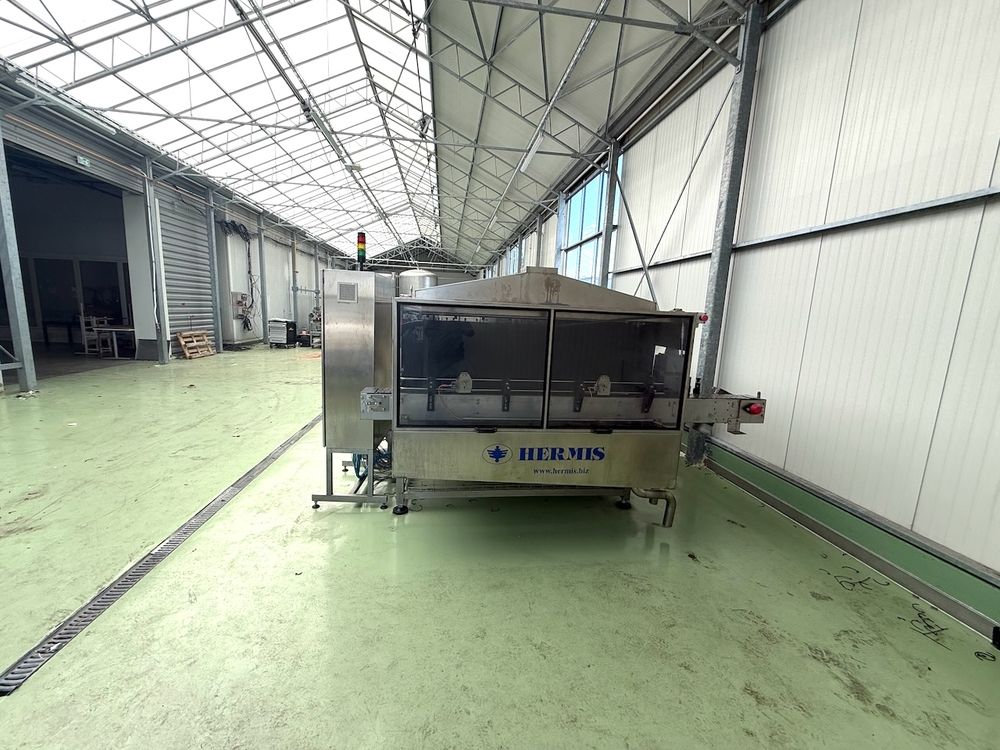

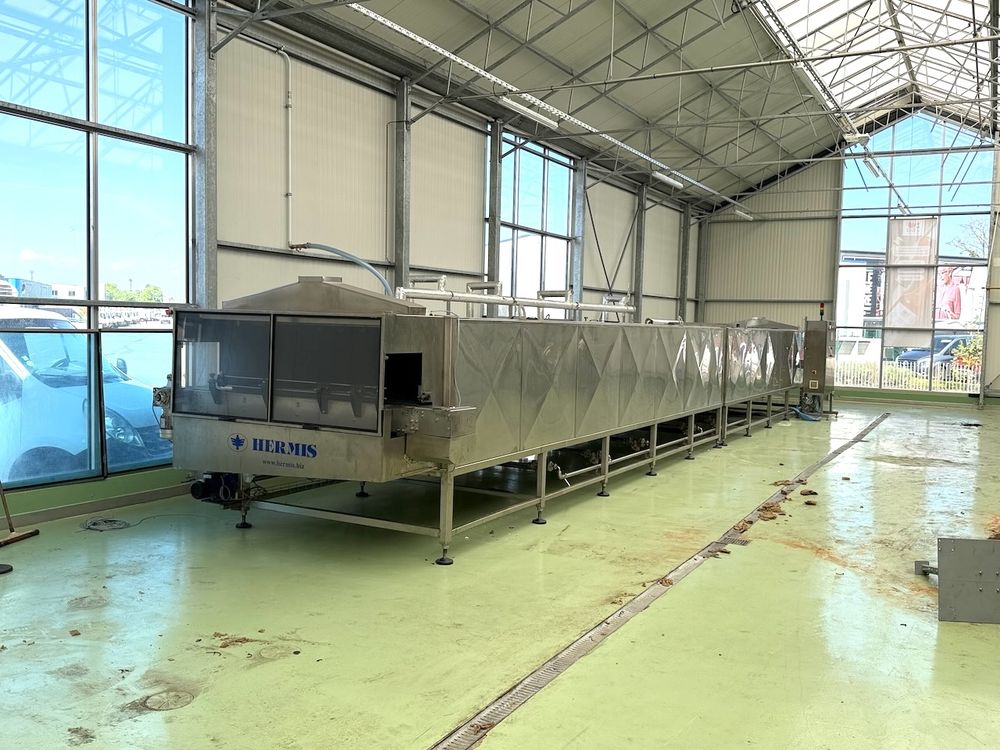

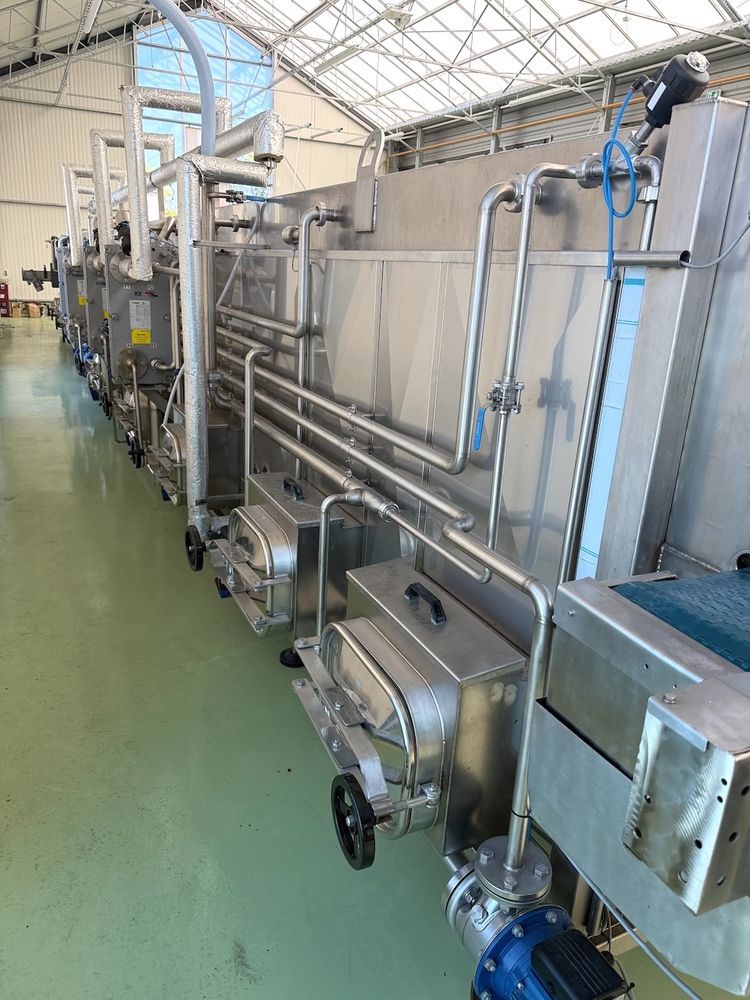

HERMIS TP-HRW 5 TUNNEL PASTEURIZER

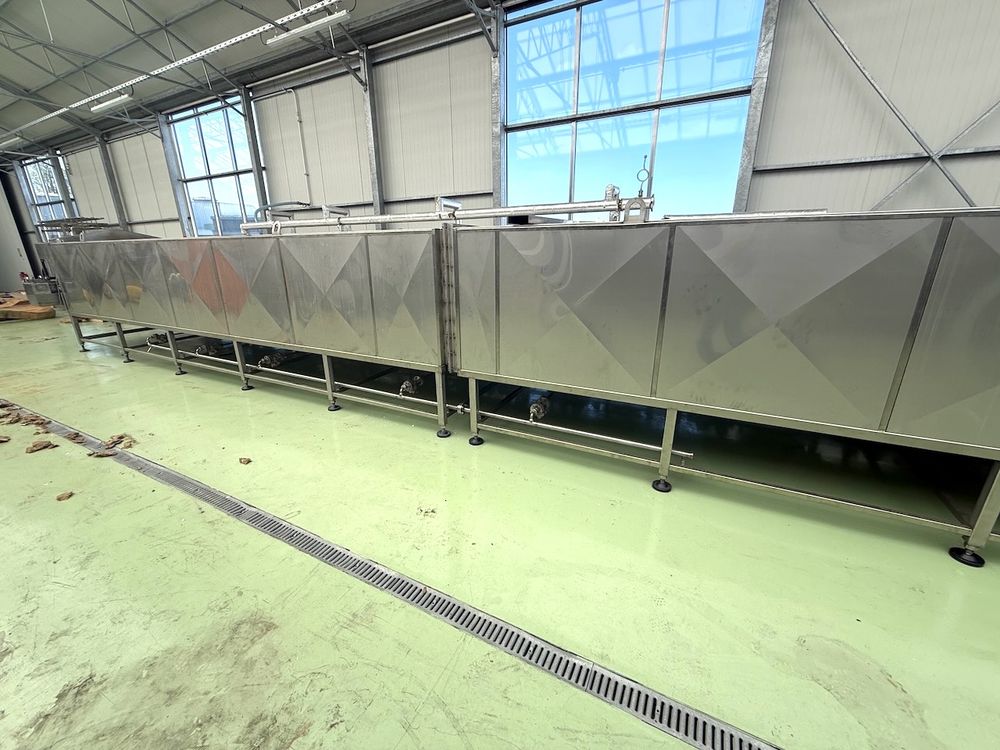

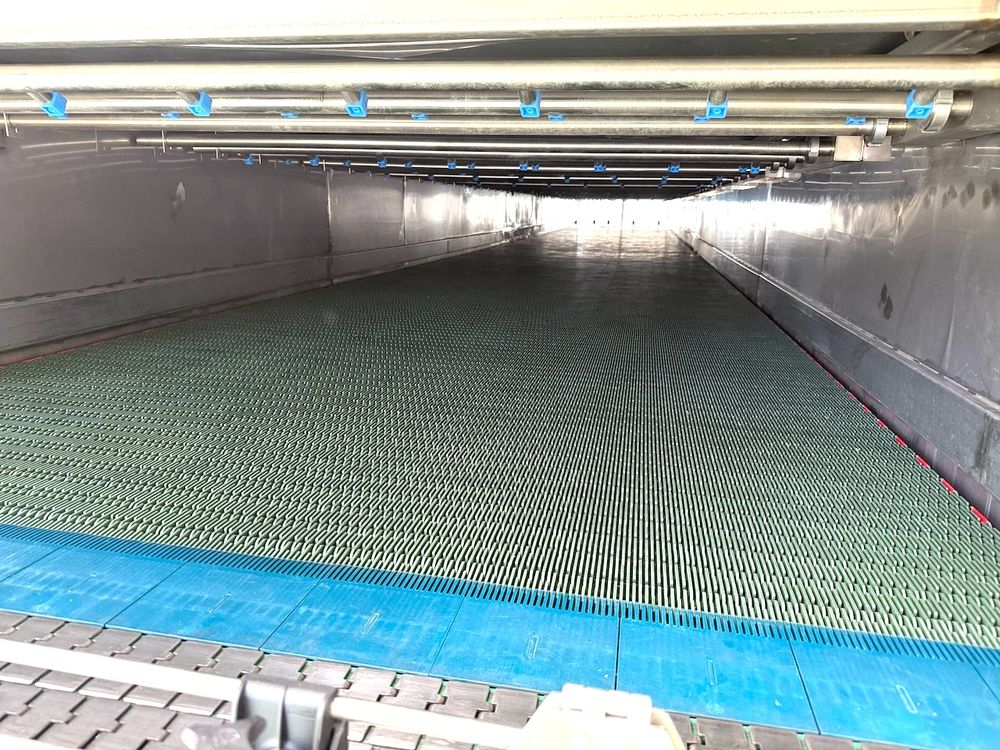

Full stainless steel with Intralox belt
Overall dimensions : 15.500 x 2.400 mm – h : 2.100 mm

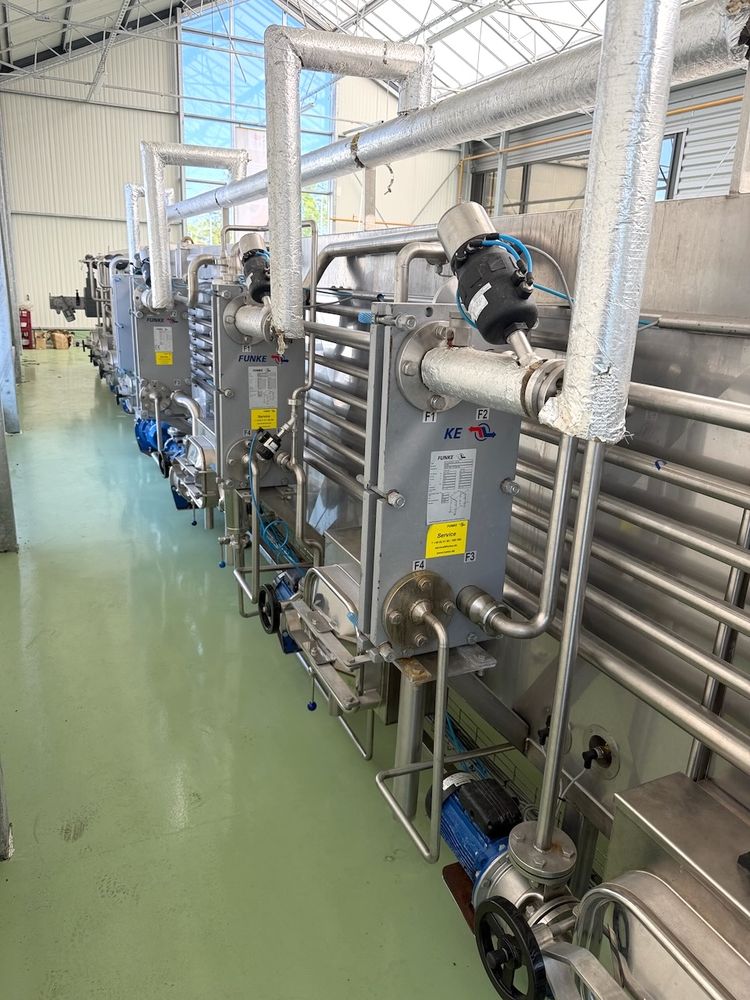

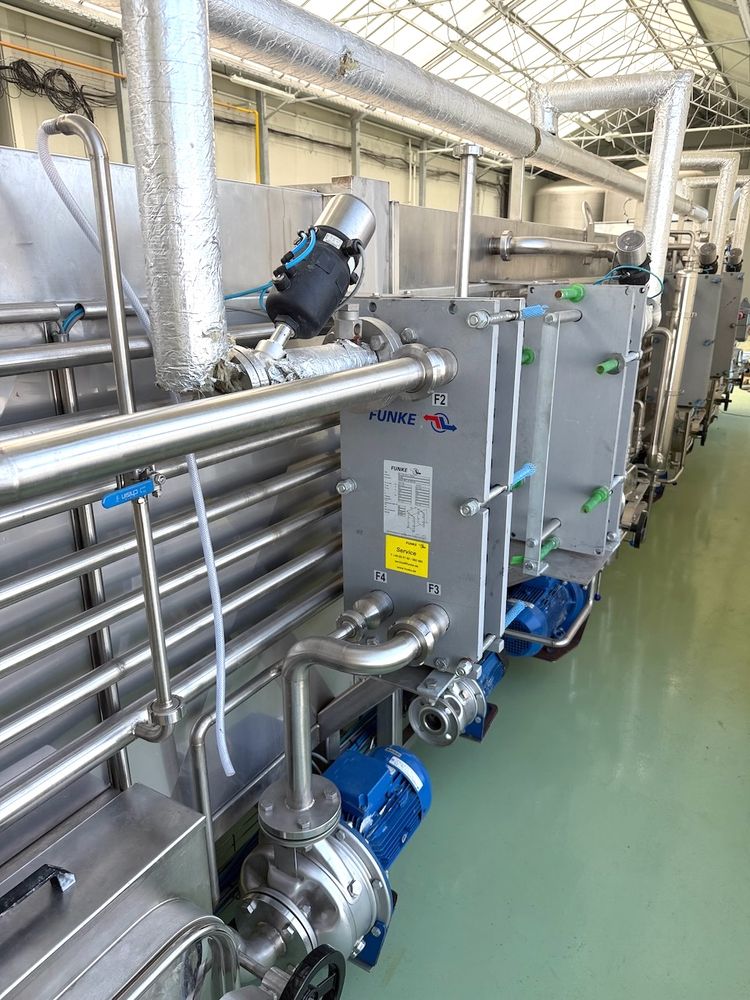

10 Zones : 5 heating zones, 1 pasteurisation zone (up to 82°c) & 4 cooling zones Fitted with 4 plate heat exchangers from FUNKE model FP10-13-1-EH-1 (Up to 10 bar)
Steam consumption : 280 Kg/h @ 3-4 bar Water consumption : 1,3 m3/h @ 2 bar

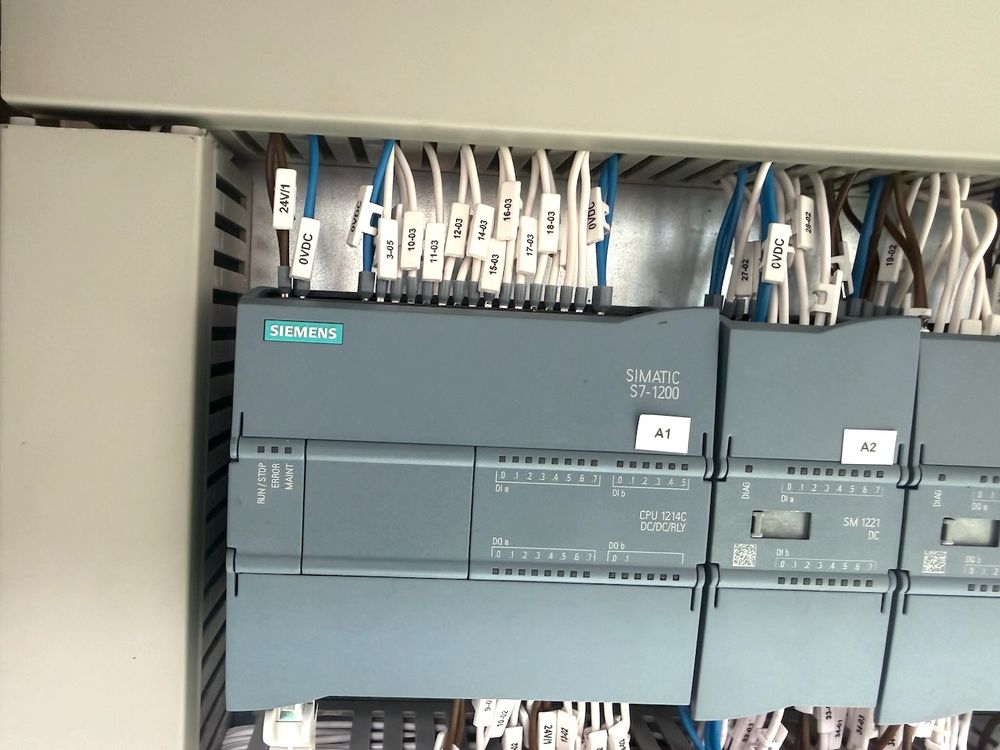

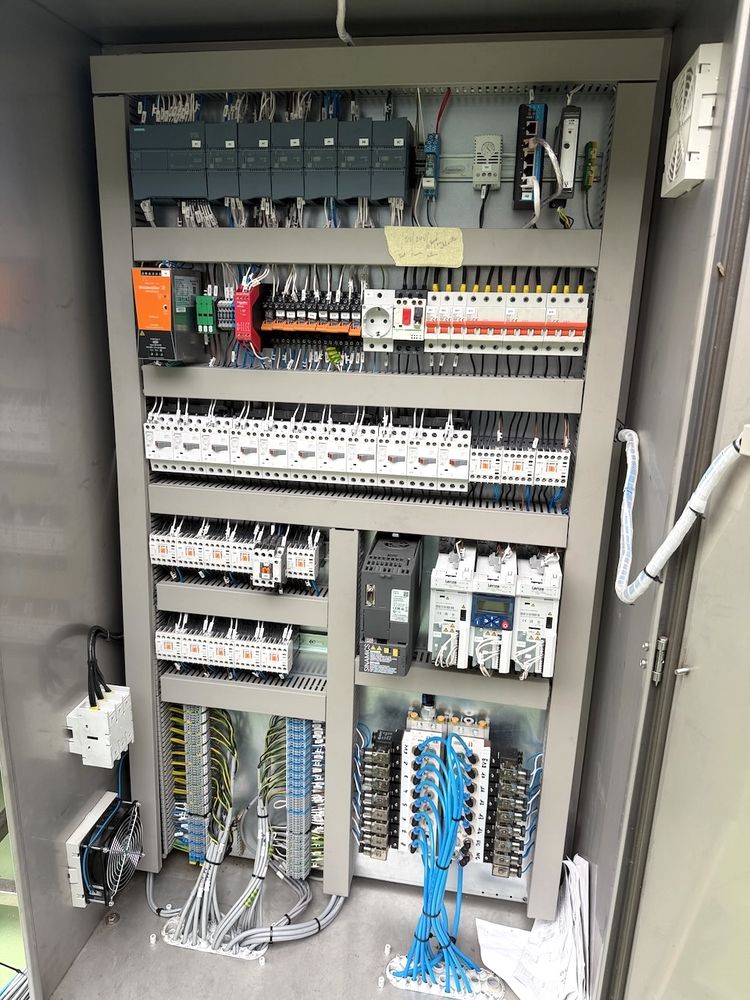

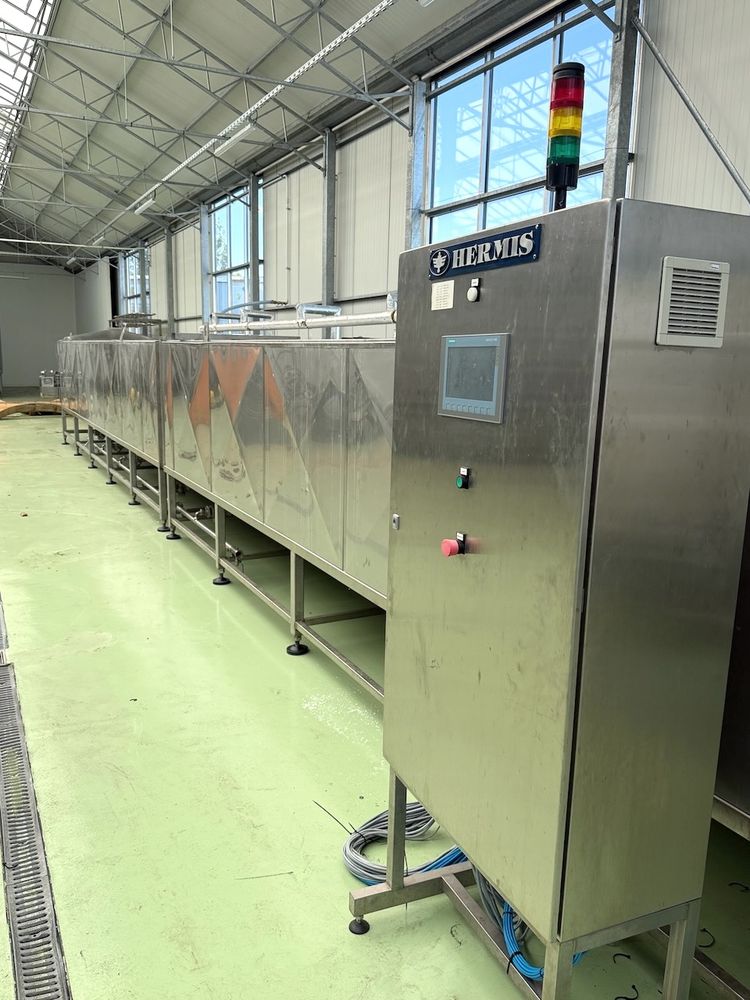

PU regulation with SIEMENS SIMATIC S7-1200 & SIMATIC touch-screen HMI KTP 900
With beer : 10,000 bph x 33 cl & 6,000 b ph x 75 cl
With Juice (Pasteurisation T° @ 84°c) : 2,500 bph x 100 cl Can also work as bottle cooler
