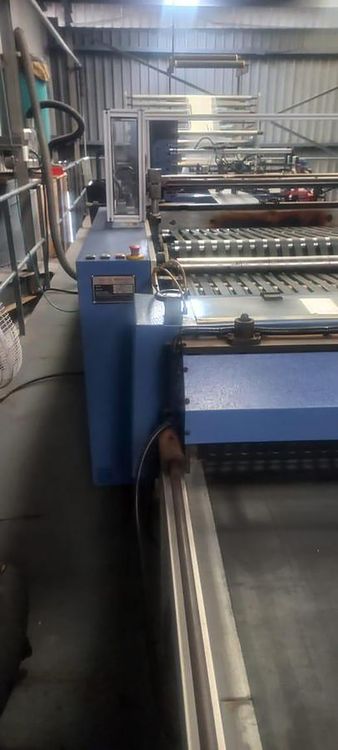

TY-1050 MT Side weld bag making machine

GUR-IS MAKINA TY-1050 MT - Side weld bag making machine
Condition Used
Type Side weld bag making machine - PE film 20-100mcm
Type of production:
Side weld bags: Patch handle bags with handle cut off
Safety bags
Different type of side-weld bags
Side weld & Bottom seal bags
Bottom Gusset bags
Open/Closed lip bags.
Round Bottom Bags
Header Seal Bags

Material that can be processed LDPE, HDPE, and recycled extracts
Sealing width (bag length) Up to 1050 mm
Draw length (bag width) From 80 to 600 mm
Linear speed Up to 300m/min
Bags per min. Up to 200 Cpm
Driving system PLC controlled - Operator interface terminal - Print registration control - Servo motor driven (input nip rollers, sealing bar)

Attachments and accessories:
Driven un-winder 1600 mm wide
Gusseters including
Handle insertion
Longitudinal sealer
Presealers
Angle sealers
Cross sealers Handle cut-out Banana-hole puncher
Patch handle, glue and heat seal
String and flanged zipper attachment
Photocell for printed film
Automatic one-step conveyor / index conveyor
Handel punch unit G- folding unit V-fold station
Web guide unit 1600mm
Anti-static bars
