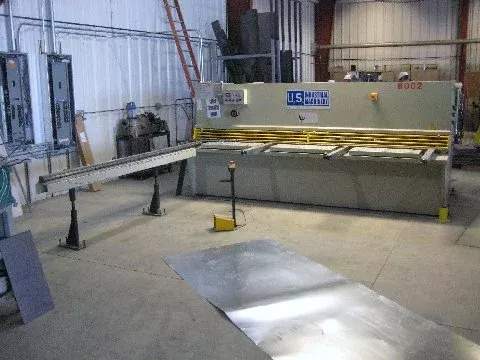

U.S. Industrial 1025

U.S. INDUSTRIAL
1025

Squaring Arm Bolt on table segments…qty of 3
High Carbon, High Chrome Shear Blades
Hold-downs faced w/anti-mar neoprene
Quantity of 24, 1” ball transfers
Swing Beam Design
Manual Quick Change Blade gap adj.
Pressure Sensing Hold downs
Squaring Arm, 43.5” from blade to end
Electric stroke adjustment
Stroke Counter
Operator control console
Front-controlled power back gauge
Shadow lighting
Blade Guard, Micro switch protected
Low noise gear pump
Hydraulic, Electrical Overload Protection
3 support arms
Automatic Swing-up on back gauge
We have both NEW & USED available, call us.
Max Thickness 0.25"
Length of Blade 120"
Hyd/Mech Hyd
Back Gauge 36"
Power 15 hp
SPM 17 strokes/min.

Sheet Size 126”
Shearing Capacity 1/4” Mild Steel @ 65000 PSI
Shear Angle 1 degree 30’
No Load Strokes 14
Throat Depth 5.5”
Adjustment Range Of Back Gauge 0.75”-36”
Hydraulic Oil Capacity 71 Gal.
Main Motor 15 HP
Net Weight 15,550 lbs
Dimensions (L x W x H) 157” x 63” x 63″
