Uhling HP-3000

Ref : 2801382-15-MT
Condition : Used
Manufacturer : Uhling
Model : HP-3000
Year(s) : 2001
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

USED Case Clamp (Single-Bay)
Clamping capacity: 72" L x 74" H x 24" D; Large enough for multiple boxes; offers versatility, quick 30-Sec setup or changeover.
-- Pressure Elements
(4) Dual air pod pressure bars that are pneumatically activated; counterweight balanced; just position them effortlessly and let go: Counterweight will keep them in place; no need to secure them!
-- Air Pod Stroke
3-1/2" Stroke of air pod with: 0 - 120 PSI Pressure adjustment.
-- Vertical Beam
Moves easily on roller bearings; pneumatic carriage locks with: (4) Small air cylinders from (1) control point.
-- Operator Control Panel
Mounted on vertical beam so it is always where it is needed; single lever lock-or-unlock control & front/rear pressure selection.
-- Counter Support
By solid laminated panel opposite to pressure bars.

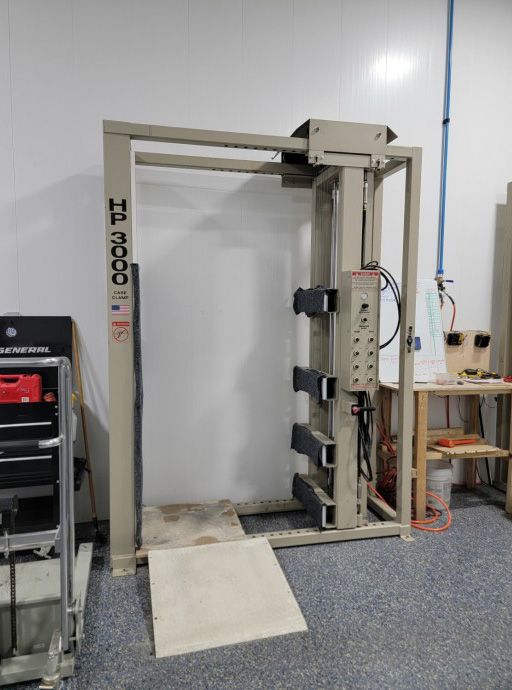

-- Actual Model: UHLING HP-3000
