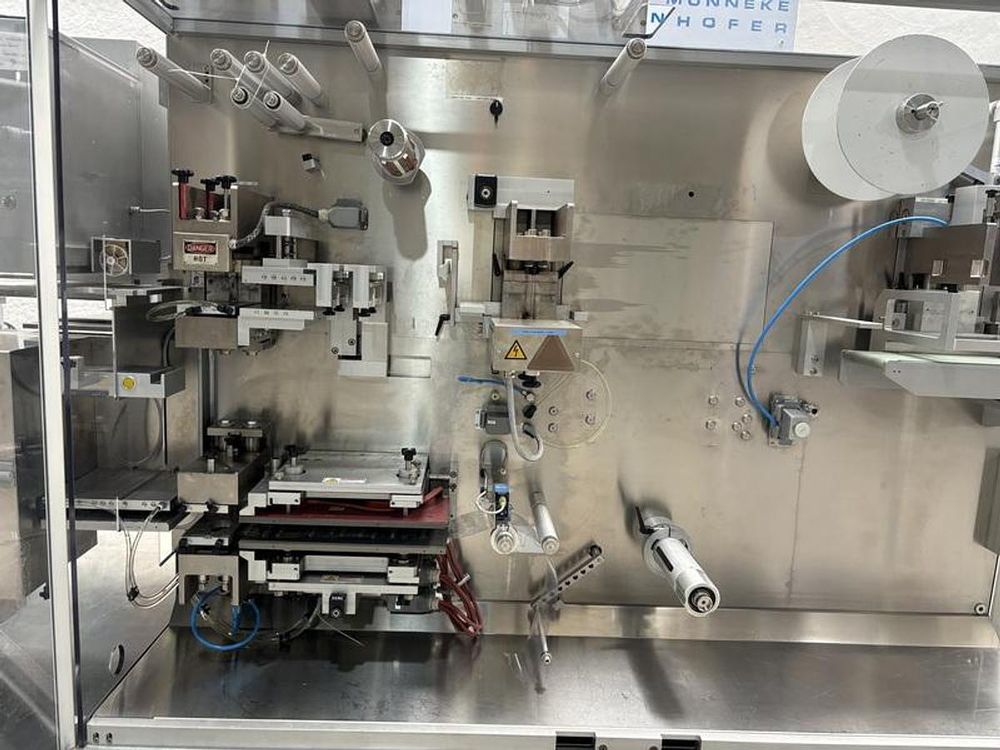

UHLMANN B 1240, Blister Machine
EUROPE (Western and Northern)
Description:
For operation with ALU/PVC and ALU/ALU
• Format range (width x length) min. 50 x 22 mm / max. 156 x 115 mm
• Depth max. 10 mm
• Output 15-55 strokes/min.
• Conveying length 42-115 mm
• Sheet width 100-168 mm
• Thermoforming film reel diameter max. 450 mm, core diameter 76 mm (PVC) / 150 mm (ALU), mechanical tension
• Sealing film reel diameter max. 240 mm, core diameter 80 mm 76 mm, mechanical tension
• Bonding point detection
• Print image control with stretching of the sealing film
• Crack and pore inspection of thermoforming film and Visiotec VisioScan MT-160/200 sealing film
• Heated plate station for PVC thermoforming film (not available; can be equipped upon request at an additional cost)
• Compressed air thermoforming station for PVC thermoforming film, pre-equipped for a pre-stretch die
• Mechanical forming station for ALU film
• VisioChrom HR 302A1 filling control
• Underside coding station with Domino D320i laser coder and DPX 1000 SA Digital suction system
• Perforation station (heated) for marking the film between products to facilitate tearing
• Slitting station for slitting the film (format)

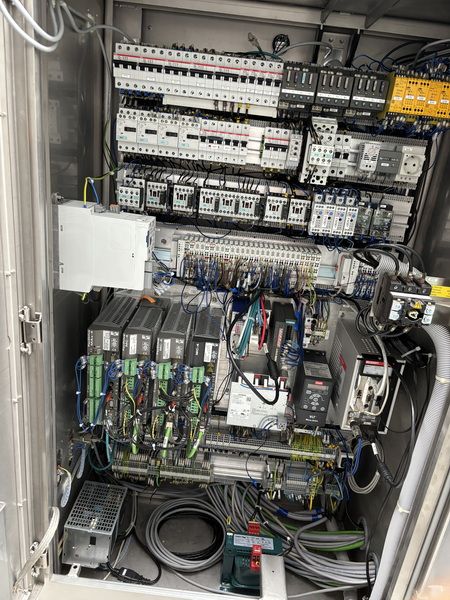

• Beckhoff IPC control C6330-1002, new in 2014, with Beckhoff touch panel, Windows 2000 Professional operating system
• Menu languages: German and English
• No product feeder. Installation of a used directional feeder (SimTab) for tablets/capsules is possible upon request for an additional charge
• No defective product ejector
• Only 5,881 operating hours
• Power connection: 400V/50Hz
• Menu language: German/English, other languages upon request
