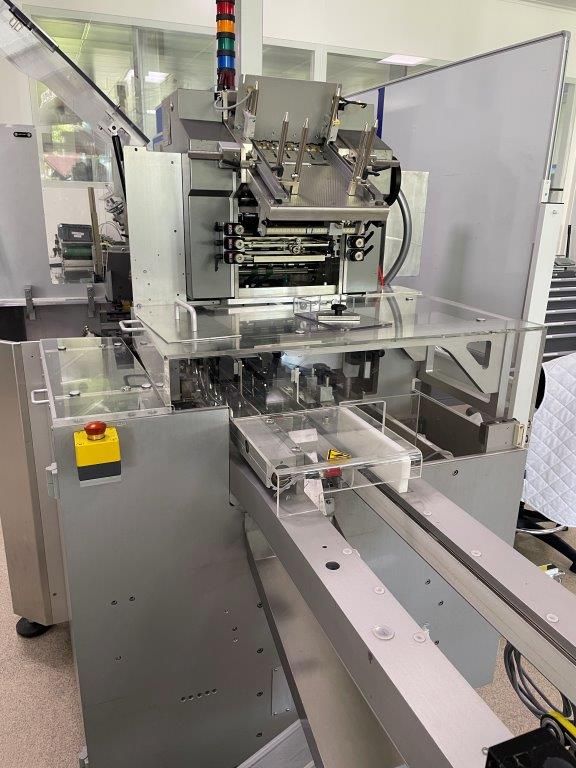

UHLMANN C 130 Cartoner

Folding box sizes W 30endash 100, H 15endash 85, L 70endash 150 mm
Blister sizes L 65endash 145, W 25endash 95, H 3.5endash 12 mm
Output 15endash 120 folding boxes/min, cycled, depending on format/product
Offset plug closure on both sides
3 blister destacking chutes for blisters 98x60 mm, 98x44 mm, 78x34 mm
Replenishment chute
Brochure folding and insertion machine from stack GUK FA 21/4 Cartonac 2000-2, built in 2014, 4 folding pockets
• 2 colour embossing stations for folding flap on insertion side and opposite insertion side (embossing rollers not included in scope of delivery)
Missing packaging rejection with ejection counter-check
Code reading Laetus brochure bottom/top, folding box code opposite insertion (COSI 221)
Brochure presence in folding box
New in 2013, complete conversion of the control system by Uhlmann at 10,284 operating hours:
- Elau servo motors
- Elau PacDrive C400 A8 multi-axis controller
- 3x Elau PacDrive MC-4 servo controllers
- Wago 750-338 PLC fieldbus coupler
- CAN bus
- HMI panel Pac2 15" touch with Uhlmann TouchControl operating system with audit trail
UPS battery
Connection 400V/50Hz/5A
21,367 operating hours
