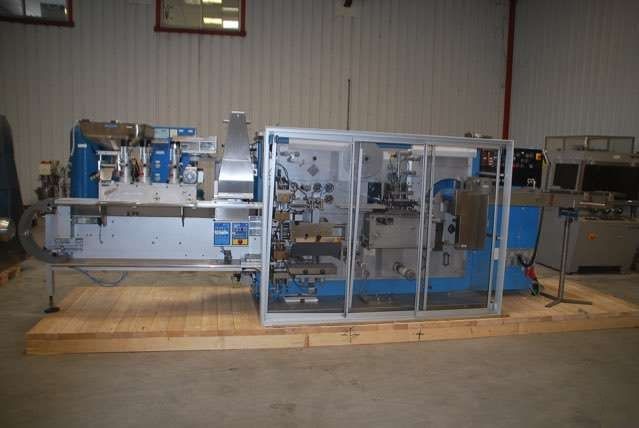

UHLMANN UPS 300

Blister packaging machine for pvc/alu
Weight : 1400 kg
Dimensions : (L x W x H) 4.35 x 1.10 x 1.60 M

Automatic blister machine with intermittent motion for tablets, pills, and capsules...
Possiblity to do alu/alu blister (in extra)

Equipment:
- Reel pvc film or alu foil holder
- Thermoforming station
- Feeding station by hopper with disc, vertical tray and universal flood feeder
- Blister control by camera
- Forming film heating plates
- Embossing coder (currently without character)
- Die cutting station
- Blister conveyor: 600 mm long x 160 mm wide
- Discharge system by conveyor: 1650 long x 200 mm wide
- Rejection system for faulty blister
- Control panel with plc / temperature regulator
- Driven by variable speed
- Safety guards

Current equipment:
Complete tools:
- 1 front blister 120 x 70 mm. 28 tablets diameter 10 mm - thickness 4 or 5 mm
Incomplete tools:
- without thermoforming plate and without heat sealing plate.
- 1 cutting tool for blister 90 x 46 mm, for 3 front blisters with all its guide ramps
- 1 cutting tool for blister 100 x 70 mm, for 2 front blisters with all its guide ramps
- 1 cutting tool for blister 108 x 74 mm, for 2 front blisters with all its guide ramps

Capacity:
- Maximum pvc film width: 170 mm - 400 mm diameter
- Maximum alu foil width: 170 mm - 240 mm diameter
- Indexing length: 108 mm
- Forming depth: max. 10 mm Blister pvc/alu
- Forming depth: max. 18,5 mm Blister alu/alu

Output: 60 cycles/minute (100-150 bliters/minute)
Power: 6 kw
Pressure: 6-8 bar
