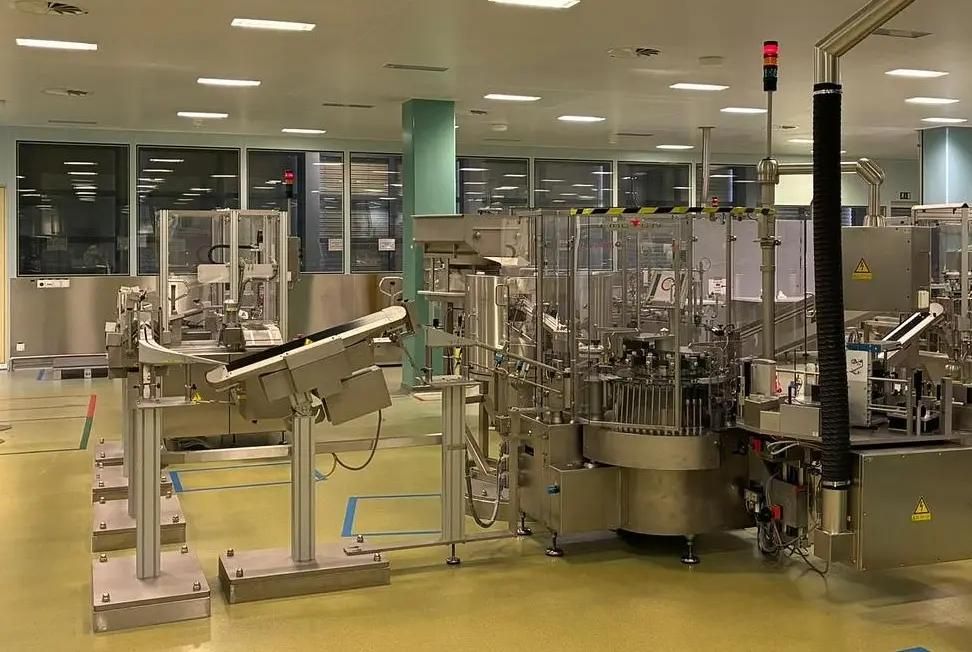

UHLMANN UPS 4 - C2206 - EKK 62 - VSM1221 - TD210 - ESS1001 - H-230 - CL400 VTS - E 3060 - SH120 Blister Line

Output: 15-50 cycles/min
Forming: width 62 - 226 mm (min - max)

Blister format: min. 60 mm; max. 140×39 mm
Depth: pvc 12 mm; alu 10 mm

DIMENSIONS
Weight: 4.950 kg

ENERGY CONSUMPTION
Voltage: 3/N/PE AC 400 V
Current: 30 A

2) UHLMANN CARTONING MACHINE, MODEL C2206
Year of construction: 2005

PRODUCTION CHARACTERISTICS
Max. output: 200 cartons/min.
Max. carton size [A x B x H]: 130 x 100 x 200 mm
Pitch: 6''
Max. no. of blisters: 10

Closures: tuck-in, hot-melt
Products: blisters, bottles

DIMENSIONS
Weight: 6,000 kg


ENERGY CONSUMPTION
Voltage: 3/N/PE AC 400 V
Current: 15 A



3) INOVA LABELLER, MODEL EKK 62
Year of construction: 2006

ENERGY CONSUMPTION
Voltage: 230/400 V
Current draw: 9 A
Frequency: 50 Hz



4) INOVA ASSEMBLY AND EJECTION UNIT, MODELS VSM1221 + TD210
Year of construction: 2006

ENERGY CONSUMPTION (BOTH MACHINES)
Voltage: 230/400 V
Current draw: 5 A

5) BAUSCH + STRÖBEL TRAYPACKER, MODEL ESS1001
Year of construction : 2013

PRODUCTION CHARACTERISTICS
Max. output: 12.000/hour

Label length: 20 mm - 120 mm
Label height: 15 mm - 80 mm

DIMENSIONS
Weight: 900 kg

6) HAPA INKJET PRINTER, MODEL H-230
Year of construction: 2005

PRODUCTION CHARACTERISTICS
Max. cycles: 120 cycles/min
Max. print speed: 21.6 m/min

Belt width (min - max): mm 64 - 310
Feed length (min - max): mm 30 - 180
Print length (min - max): mm 30 - 180

Printhead resolution: 360 dpi


7) SORTIMAT BLISTER HANDLER, MODEL CL400 VTS
Year of construction: 2016


DIMENSIONS
Weight: 2,340 kg

ENERGY CONSUMPTION
Power: 3.4 kW / 5.0 A

8) UHLMANN BUNDLING MACHINE, MODEL E 3060
Year of construction: 2006

PRODUCTION CHARACTERISTICS
Carton sizes: 130 x 105 x 250 mm (max)
Bundle size: 250 x 150 x 250 mm (max)
Infeed capacity: 500 cartons
Output: 60 bundles

DIMENSIONS
Size: 1,400 x 2,000 x 4,300 mm (approx.)
Weight : 2,100 kg

ENERGY CONSUMPTION
Voltage: 3/N/PE AC 400 V
Current: 18 A

9) OPTIMA SYRINGE DISPENSER, MODEL SH120
Year of construction: 2008
