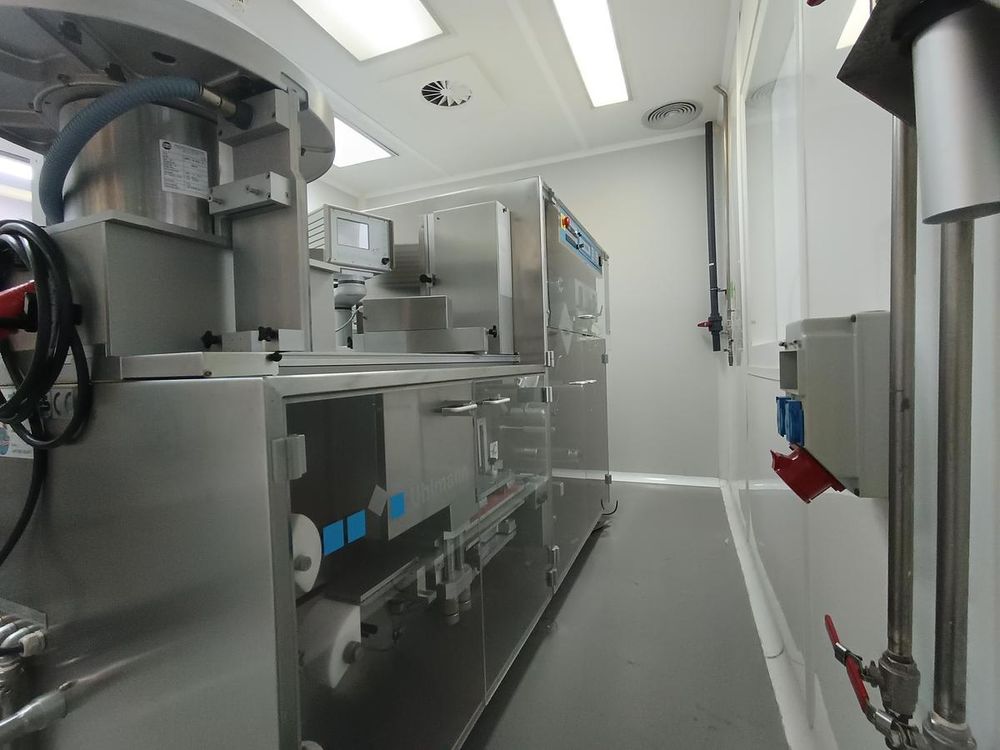

UHLMANN UPS 600

Length 2,600 mm
Width 860 mm
Height 1650 mm

Weight 1500 Kg
Connecting powers 230/400 V , 50 Hz
Heating Powers: 2.25 KW heating station, 2 x 3 circuits
1.92 Kw sealing station , 12 heater cartridges
Engine powers 2.2 Kw main motor
Total connection power approx., 20 Kw
Cutting surface
Direction advance 30-80 mm
Transverse to the advancing direction 60-130 mm
Molding Film
Maximum roll diameter 600 mm
Core diameter 76 mm, standard
150 mm , aluminum
Cover film
Maximum diameter of roll 240 mm
Core diameter 76 mm
Blister
Minimum Blister width 30 mm
Maximum 80 mm
Minimum blister length 60 mm
Maximum 130 mm
Maximum cutting format 80x 130 mm
Possible PVC , PVC/PVDC , AL
Compressed air
Network connection N W 19
Input pressure 8 bar
Pressure output 6 bar
Consumption 12-1000 NI/ min (depending on format, cycles, etc)
POWER
Margin CS minimum 20 cycles per minute
Max. 80 cycles per minute
Margin CM minimum 40 cycles per minute
Max. 240 cycles per minute
RANGE FORMATS
Minimum molding film width 74 mm
Maximum 144 mm
Maximum molding depth 10mm
Minimum CS advance 108 mm
Maximum 160 mm
Minimum CM advance 30mm
Max. 80 mm
