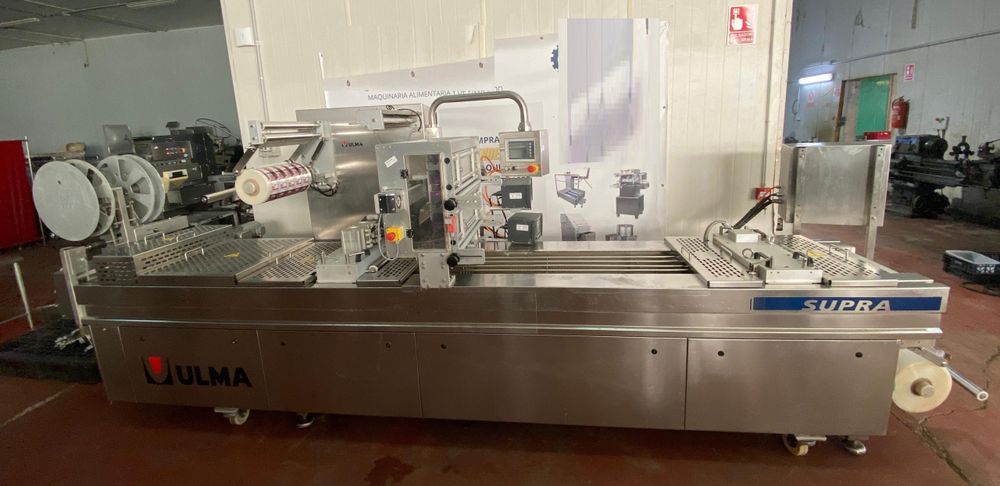

Ulma TF SUPRA, THERMOFORMING MACHINE

Technical Specifications:
External Dimensions (mm):
Height: 1950
Width: 4830
Depth: 1150

Dimensions of 5x1 Mold 1 (mm):
– Height: Maximum 90
– Width: 55
– Depth: 227
Dimensions of 2x1 Mold 2 (mm):
– Height: Maximum 90
– Width: 167
– Depth: 227
Dimensions of 1x1 Mold 3 (mm):
– Height: Maximum 90
– Width: 335
– Depth: 227

Internal Dimensions (mm):
Formed Film Width: 423 // Film Overlap: 415

Operation: Electric and pneumatic
Power (kW): 12
Voltage (V): 380
Current (A): 20
Frequency (Hz): 50

Features:
Constructed of stainless steel
Flexible film thermoformer
Optional sealing-only or vacuum operation
With a centering device for printed film
With adjustable vacuum level
With adjustable temperature, forming time, and sealing time (depending on the film type)
With a film scrap collector
With 3 transverse blades
With wheels for easy transport
Requires water recirculation to cool the molds
