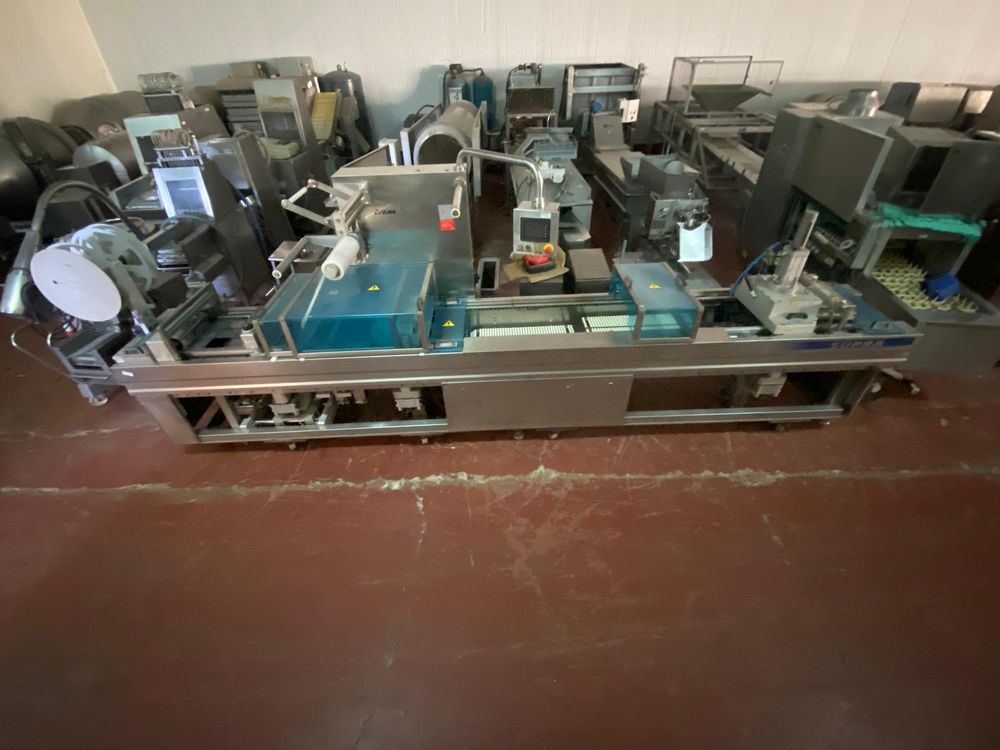

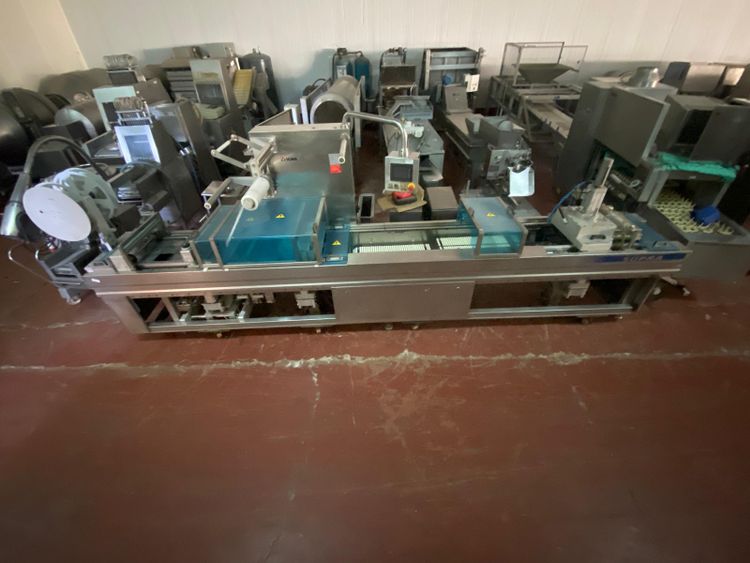

Ulma TF-SUPRA, THERMOFORMING MACHINE

Technical Specifications:
External Dimensions (mm):
Height: 2100
Width: 6150
Depth: 1050

Dimensions 1X3 MOLD 1 (mm):
– Maximum Height: 140
– Width: 110
– Depth: 130
Dimensions 2X1 MOLD 2 (mm):
– Maximum Height: 140
– Width: 365
– Depth: 125
Dimensions 2X2 MOLD 3 (mm):
– Maximum Height: 140
– Width: 175
– Depth: 130

Dimensions 1X2 MOLD 4 (mm):
– Maximum Height: 140
– Width: 285
– Depth: 180

Operation: Electric and Pneumatic
Power (kW): 12
Voltage (V): 380
Frequency (Hz): 50

Features:
Constructed of stainless steel
Thermoformer for rigid and flexible film
Operating options: "seal only", vacuum, and vacuum and gas
With rigid and flexible cutting system that requires no changeover
With excess film collector
Fold film width: 420mm
Formed film width: 427mm
With touchscreen and intuitive software
With adjustable temperature and forming and sealing time
With adjustable vacuum and gas quantity
