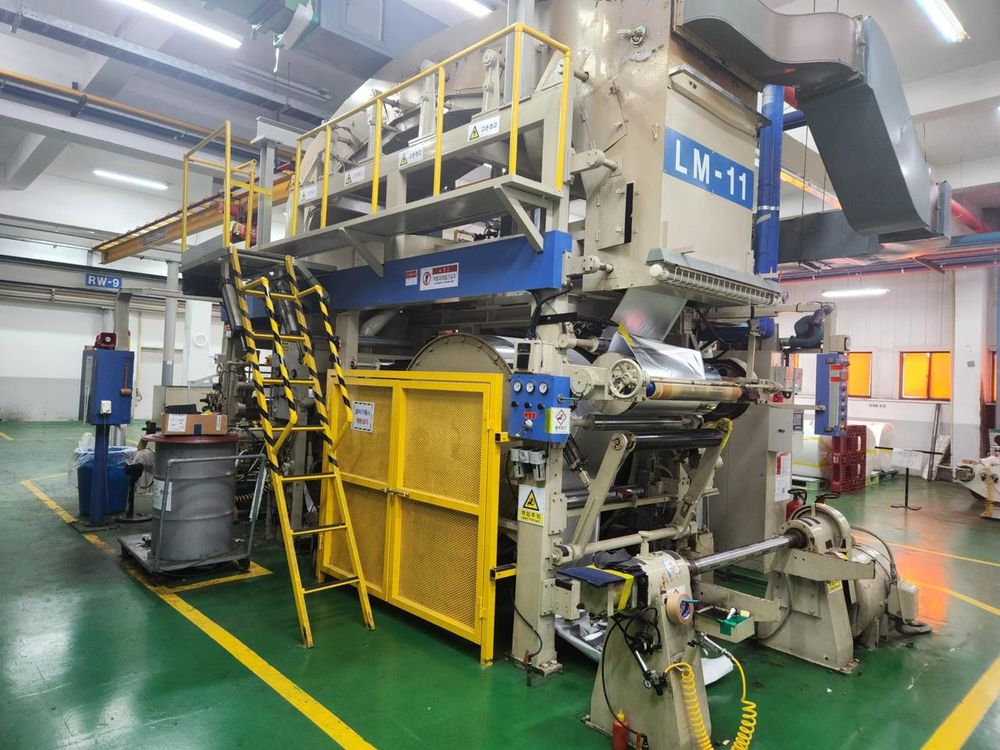

Ulvac EWA-165 Vacuum Roll Coater
Ref :
2764614-4-MT
Condition :
Used
Manufacturer :
Ulvac
Model :
EWA-165
Short Description :
Vacuum Roll Coater
Year(s) :
2015
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
GENERAL INFORMATION:
Type: Vacuum Roll Coater (Vacuum Metallizer)
Application: Metallization of plastic films (PET/OPP/PE etc.) by aluminum evaporation
Useful web width: up to 1650 mm
Film thickness range: 12 μm typical.
POWER SUPPLY:
Control / Main Units
Power supply: 3Φ, 60 Hz, AC 380 V
Rated power consumption (cabinet 1): 290 kVA
Rated power consumption (cabinet 2): 160 kVA
VACUUM SYSTEM:
Main Pumps:
Oil Diffusion Pump (Ejector type):
Model: ULVAC PBL-20
Power: 18 kW
Fluid charge: 90 L
Voltage: 380 V
Water cooling requirement: 25 L/min (
