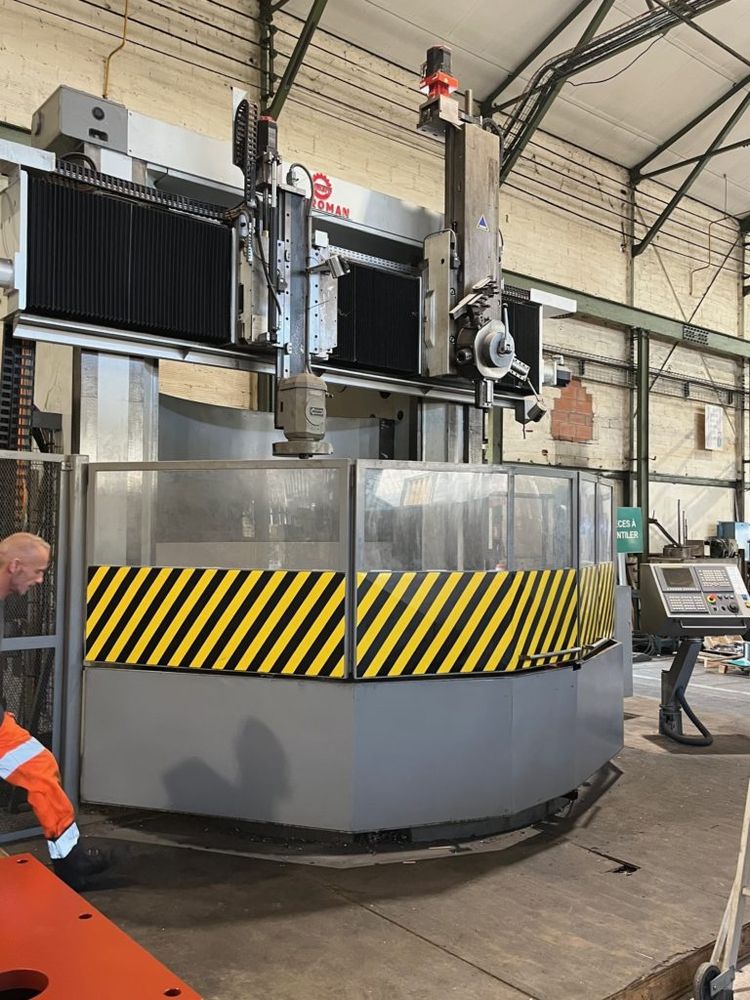

Umaro SC27 Max swing diameter: 2650 mm
Ref :
2733116-3-MT
Condition :
Used
Manufacturer :
Umaro
Model :
SC27
Short Description :
Max swing diameter: 2650 mm
Year(s) :
2018
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Control: FANUC 0i
Max swing diameter: 2650 mm
Max turning diameter: 2600 mm
Max turning height: 1900 mm
Chuck diameter: 2500 mm
Max load: 15 T
Chuck speed (2 ranges): 1–112 RPM
Main motor power: 75 / 60 kW
Vertical stroke RH saddle: 760 mm
Vertical stroke LH saddle: 1200 mm
Cross-rail vertical stroke: 1600 mm
Equipped with CNC grinding head on RH saddle
Equipped with set of 4 chuck jaws
Footprint + height: 5 x 4.8 x 4.8 m
