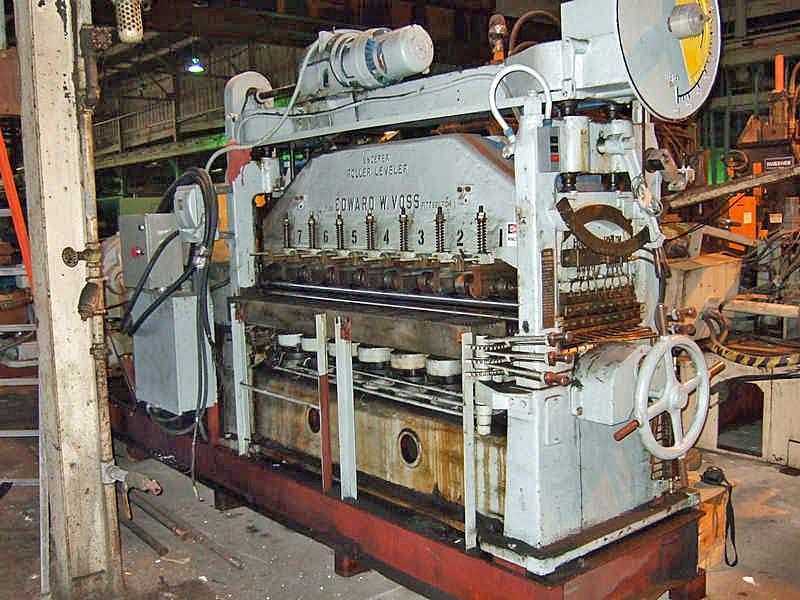

Ungerer, Voss 20.47.17.7

Capacity: 72 in × 0.065 in
Work rolls: 17
Work roll configuration: 8 over 9
Roll face: 84 in
Work roll diameter: 1.846 in
Backup roll flights: 7
Adjustable backup roll flights: 6
Center backup flight: Fixed
Main drive motor: 40 HP
Main drive motor speed: 880 rpm
Main drive motor voltage: 220/440 V
Reducer ratio: 4:1
Variable speed drive: 50 HP
Line speed: 0–100 fpm
Maximum line speed: 235 fpm
Line direction: Right to left
Overall dimensions: 248 × 55 × 101 in
Weight: 25,000 lb

Precision leveler
Manual adjustment levers
Variable speed drive
Manual lubrication system
Work roll drive shafts replaced in 2000
In storage
