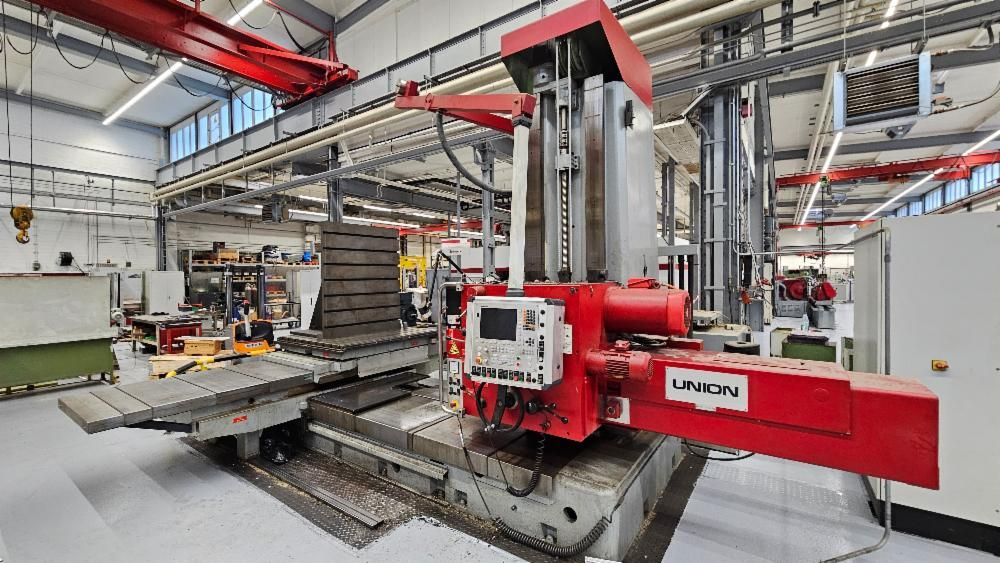

Union BFT 110/6 110 mm 1120 RPM

Union BFT 110/6
Year: 1980 (Completely overhauled with new control in 2019)

Type: CNC Horizontal Boring Mill
Control: Heidenhain TNC 128
Spindle Diameter: 110 mm
Spindle Taper: SK 50
Facing Slide Diameter: 700 mm
W-Axis Travel (axial): 800 mm
Spindle Speed: 5.6 – 1120 RPM
Facing Slide Speed: 5.6 – 224 RPM
Centering Diameter on Facing Slide: 450 mm
Table Size: 1400 x 1600 mm
Max Table Load: 6300 kg

Travel:
X-Axis (Table Cross Travel): 1950 mm
Y-Axis (Vertical Spindle Travel): 1600 mm
Z-Axis (Table Longitudinal Travel): 1950 mm
Facing Slide Radial Travel: 250 mm
Table Rotation: 360° (positioning 4 x 90°)
Rapid Traverse (Vertical & Longitudinal): 1600 mm/min

Machining Capacity:
Max Drilling Diameter: 630 mm
Max Facing Diameter: 1250 mm

Power:
Main Motor: 15 kW
Total Power Consumption: 40 kW
Machine Weight: 25.5 tons
