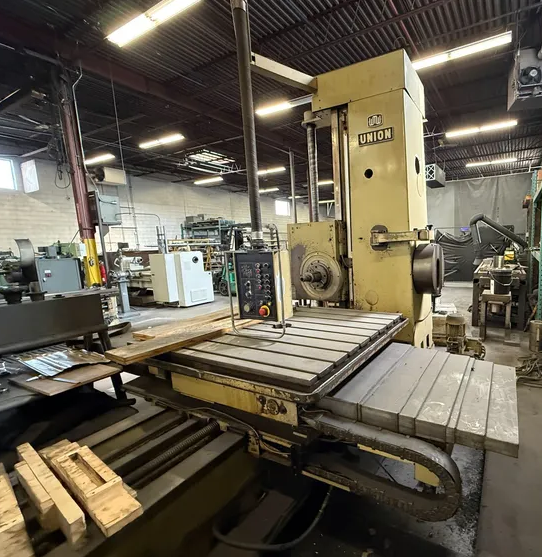

Union BFT 90/3-1 3.54" 1,600 RPM

X-Axis, Table Cross Travel 63"
Y-Axis, Vertical Spindle Head Travel 50"
Z-Axis, Longitudinal Table Travel 63"
W-Axis, Spindle Travel 28"
B-Axis, Table Rotation 360 degrees

Spindle size 3.54"
Spindle taper 50
Spindle speeds 24 speeds, 3 ranges, 8 to 1,600 RPM
Spindle motor 15 HP
Table 49" W x 55" L
Table load 5,500 lb
Table rotation 360 degrees
Facing head diameter 18"
Facing head slide traverse (U-Axis) 6.3"
Facing head speed two ranges, 8 to 250 RPM
Power draw bar
All available 50 taper tooling
Angle plates, cast iron, 57" H x 25.6" W x 19.7" FB
Pendant control
Hard ways
Voltage 460V/3/60
Acu-Rite digital readouts
Approximate machine weight 21,000 lb
