Union T 125/1 125 mm 3700 rpm

Ref : 2729976-3-GO

Condition : Used

Manufacturer : Union

Model : T 125/1

Spindle Size : 125 mm

Spindle Speed : 3700 rpm

Year(s) : 2009

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

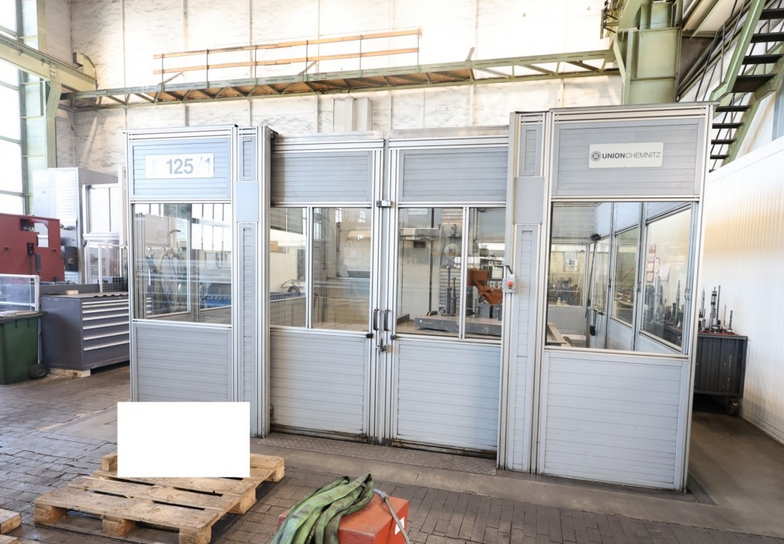

UNION T 125/1
Year: 2009

Control type: CNC
Spindle diameter: 125 mm
X-travel: 1500 mm
Y-travel: 1250 mm
Z-travel: 1000 mm
Table surface area: 1000 x 1250 mm
Workpiece weight: 6000 kg
Quill stroke: 550 mm
Tool taper: ISO 50
Spindle speed range: 5–3700 rpm
Max. torque: 2012 Nm
Feed speed X-axis: 1–6000 mm/min
Feed speed Y-axis: 1–6000 mm/min
Feed speed Z-axis: 1–6000 mm/min
Rapid traverse X-axis: 15 m/min
Rapid traverse Y-axis: 15 m/min
Rapid traverse Z-axis: 15 m/min
Machine dimensions approx.: 7.51 x 5.07 x 3.33 m
CNC control Siemens 840 D
60-position automatic tool changer
Coolant system with high-pressure pump 30 l/min, 20 bar
Documentation included
