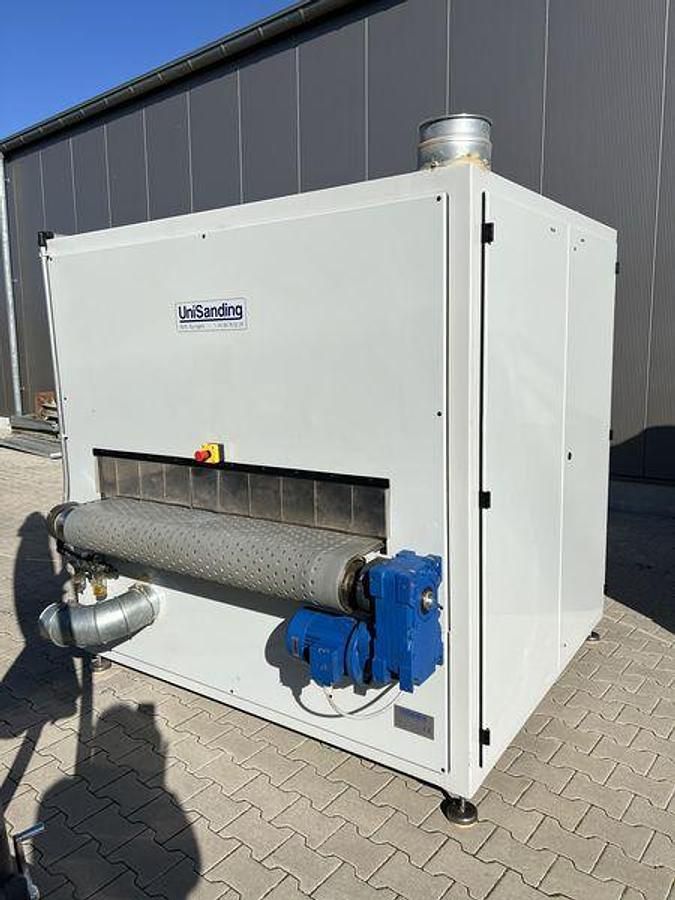

UniSanding Brush sanding machine
EUROPE (Western and Northern)
This machine will be equipped with a new Siemens PLC and touch panel.
Technical specifications:
- Type: 2.2.0 0-30°
- Working width: 1300 mm
- Year of manufacture: 2001, Retrofit: 2025
- 2 rollers, flexibly adjustable from 0-30°, operating from above
- Flex-Trim special brushes
- Vacuum belt with vacuum motor
- With glass window on the operator side
- Control via Siemens touch panel, NEW in 2025
- Grinding motors: 2 x 2.2 kW with thermal contact
- Feed motor: 1 x 1.5 kW with thermal contact
- Vacuum motor: 1 x 5.5 kW
- Roller height axis: 1 x 0.18 kW
- Feed: 2-10 m/min, frequency-controlled
- Brush speed: 50-350 rpm, frequency-controlled
- Voltage: 3 x 400 V, 50 Hz
- Fuse: 32 A
- Power consumption: 14 kVA
- Exhaust air volume (vacuum) 3,000 m³/h
- Dust extraction volume: 5,000 m³/h (provided by customer)
- Length: 2,170 mm
- Width: 2,040 mm
- Height: 2,030 mm
- Color: RAL 7035 light gray/black
- Operating side: left/right
- Brush change side: right
- Explosion-proof version: No
