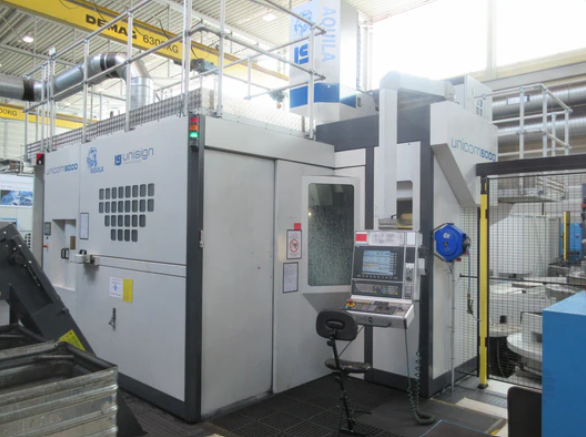

Unisign UNICOM 6000 4 Axis

X-Axis Travel: 1950 mm
Y-Axis Travel: 1425 mm
Z-Axis Travel: 1000 mm
Table Diameter: 1600 mm
Maximum Swing Diameter: 2000 mm
Pallet Load Capacity: 3000 kg
Control: SIEMENS SINUMERIK 840 D sl Solution Line
Coolant Through Spindle
Chip Conveyor
Angular Milling Head
Automatic Horizontal/Vertical Head
Electronic Handheld Control
Lamp
Vertical Turning Station
Machining Head Changer
Spindle Speed: 6000 rpm
Spindle Motor Power: 36 / 26 kW
Spindle Taper: HSK 100
Tool Changer Capacity: 78
Double Gripper Tool Changer
Voltage: 3 × 400 V, 50 Hz
Total Installed Power: 120 kVA
Machine Weight: 7000 kg
Machine Length: 7500 mm
Machine Width: 7500 mm
Machine Height: 5000 mm
