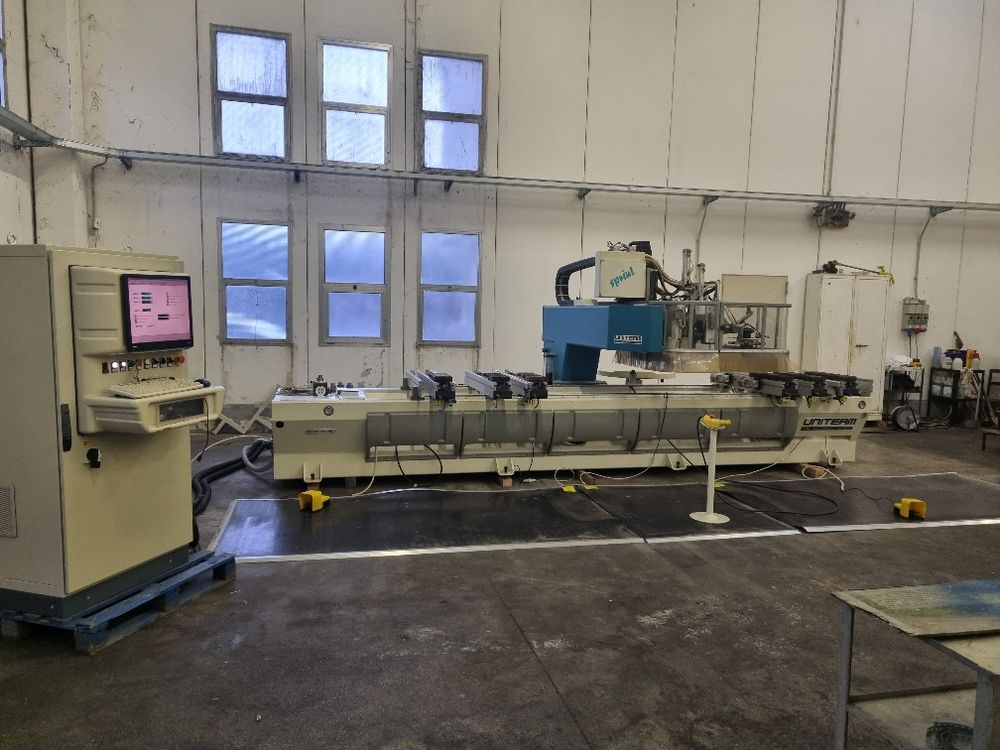

Uniteam SPRINT 4012-M 4-axes

4-axes cnc working center
complete configuration suitable for doors, furniture and windows processing
CE standard
No. 4 axes controlled
axes strokes: X 4870 mm – Y 1840 mm – Z 250 mm – C 360° (for angular heads rotation)
max axes speed: X 85 m/min – Y 85 m/min – Z 25 m/min
working area 4200×1300 mm
No. 6 rails with 3 vacuum cups each
No. 4 panel lifting device
No. 6+2 reference stop
No. 6 excludable clamps
100 m3/h vacuum pump
laser alignement device
electrospindle power 9 kw (12 hp) – max rotation 18000 rpm – HSK63F collect
double automatic toolchanger store (8-place on bord + 15-place on Y side)
HSK63F angular head with manual variable inclination
independent 2-exit angular unit with automatic tilting 0/8° – motor power 3 kw (4 hp)
independent horizontal electrospindle – max rotation 18000 rpm – motor power 5,6 kw (7,6 hp)
drilling unit with 14 vertical and 2+2 1+1 horizontal spindle – motor power 3 kw (4 hp)
No. 2 HSK63F toolholder included
automatic lubrication
cnc TPA Albatros (updated in 2018) with remote control
frontal safety mats + side metal fences
user manual + electric diagram + CE certificate
overall dimension of installed machine 7500x3800x2350h mm
machine tested by cnc technician, video available by WhatsApp
overall dimension for shipment 13500x2500x2800h mm
weight 5000 kg
