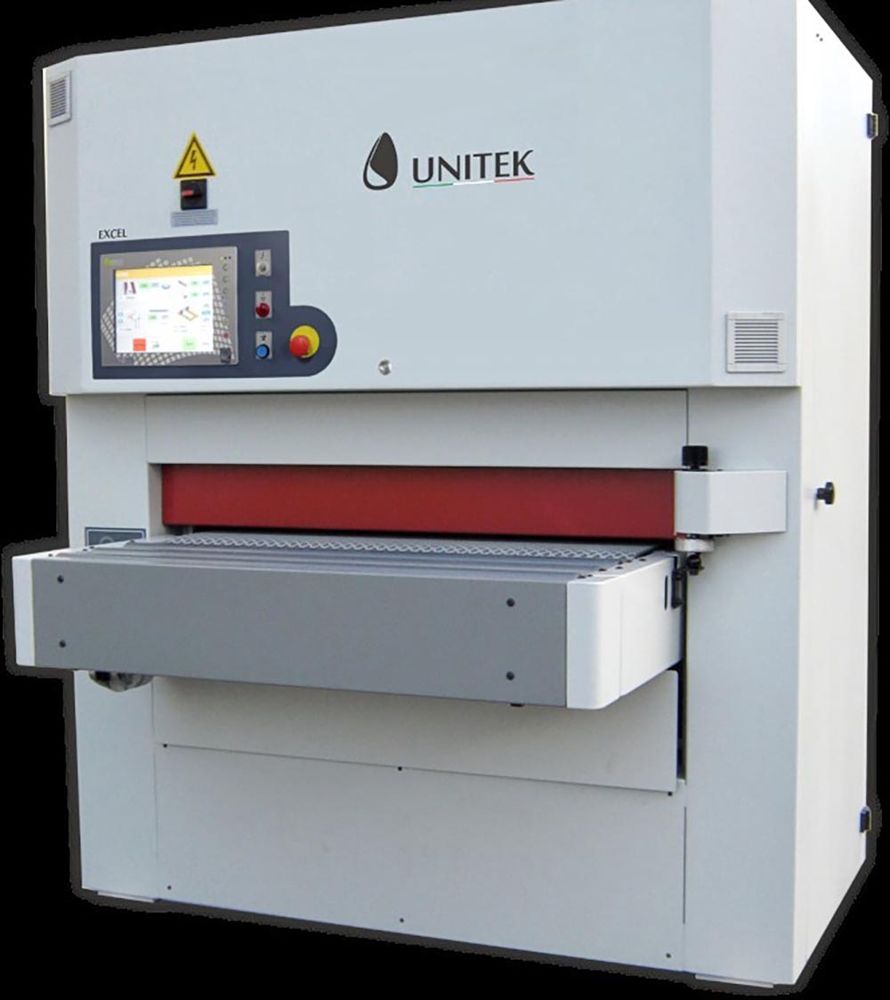

Unitek Excel LC 1370 2NRKRT

Machine Type: Wide Belt Calibration and Fine Grinding Machine
Control Type: Conventional

Technical Details:
Working Width: 1,350 mm
Motor Power: 18.5 kW
Aggregates: 2 pcs.

2-BELT MACHINE
1. BELT ROLLER
2. BELT COMBINATION UNIT ROLLER/SHOE
FOR SOLID WOOD VENEER
- Usable WORKING WIDTH mm 1350
- SANDING BELT LENGTH mm 1370 x 2150
- MAX. WORKPIECE THICKNESS mm 160
- STEEL CALIBRATING ROLLER mm 180
- RUBBER-COATED SANDING ROLLER mm 180
- SANDING BOOT WIDTH mm 50
- BELT MOTOR POWER kW 14.7
- BELT SPEED m/s 18/16
- FEED MOTOR POWER hp 0.75
- Variable speed feed conveyor with continuously adjustable speed m/min 4/20
- HEIGHT ADJUSTMENT MOTOR hp 0.33
- Mechanical BELT OSCILLATION "ECO GEAR PATENT SYSTEM"

1 DRUM BRAKE for belt braking
- Pivoting ROLLER for belt tensioning
- 3 PRESSURE ROLLERS; with rubber coating
- Emergency stop switch at the infeed
- Electronic workpiece thickness display
- 2 roller conveyors, each with 2 rollers at the infeed and outfeed
- Automatic centering of the feed belt
- 1 exhaust nozzle with a diameter of 160 mm
- Automatic table positioning

PLEASE NOTE:
New patented belt oscillation system
1. No valves
2. No light barrier
3. Not sensitive to dust
4. Energy-saving, environmentally friendly system

Since 2008, the machine model with this system has been operating continuously without a lateral belt outlet!
Includes the following optional equipment:
- Unitek pneumatic ON/OFF control for 1 unit Roller (same for all models)
-Unitek pneumatic link shoe with insert control synchronized with the feed speed
-Unitek belt motor with 18.4 kW instead of 11 kW
-Unitek surcharge for front extendable roller up to a maximum of 500 mm
-Unitek surcharge for rear extendable roller up to a maximum of 500 m
ELECTRONIC CONTROL OF MACHINE FUNCTIONS WITH 7" TOUCHSCREEN (PLC CONTROL - FULL-TOUCH WITHOUT SOFTKEY - PROGRAMS FOR CALIBRATION AND GRINDING)
