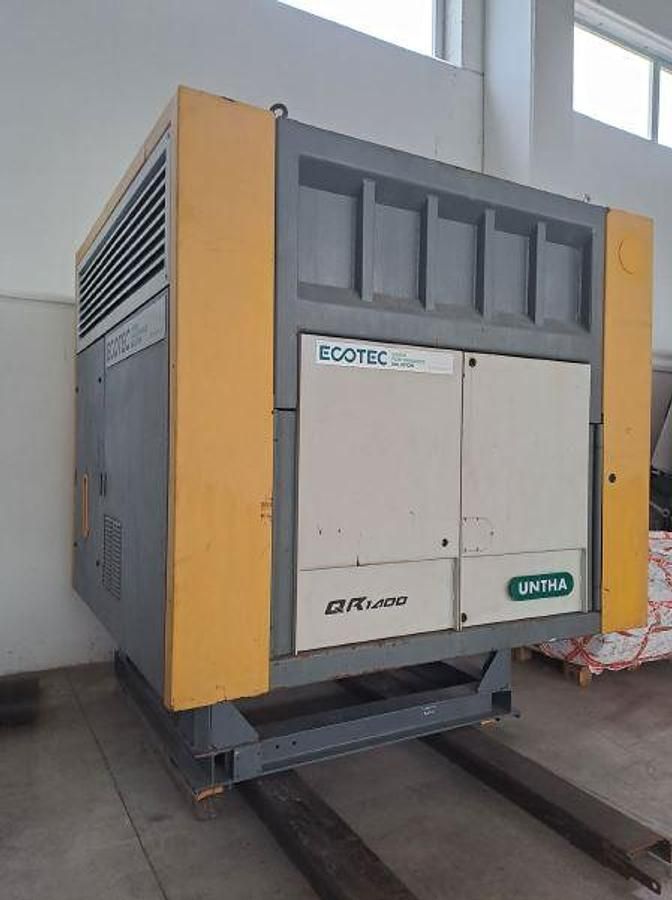

Untha QR 1400
EUROPE (Western and Northern)
UNTHA QR 1400
Construsted in year 2017

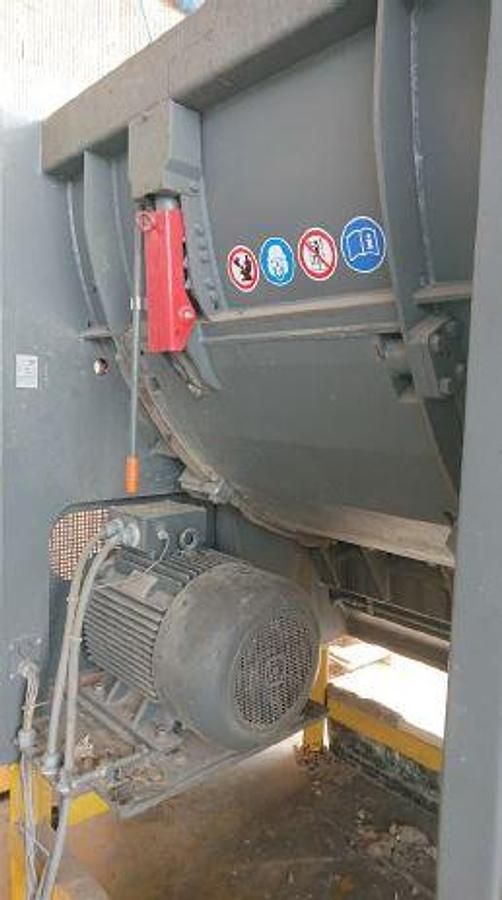

Belt drive with 2-stage planetary gear, integrated into the rotor (without rotor hub)
n. 1 x 55 kW drive
IE Class (50 Hz): IE3
Voltage: 400 V, 50 Hz
Cutting system
Rotor length: 1,400 mm
Rotor Ø: 450 mm
Number of knife rows: 2
Number of knives: 76
Knife size: 34 x 34 mm
Perforated grid: Ø 30 mm
Rotation speed at 50 Hz
Main shafts: approx. 97 rpm
Dimensions and weight
Cutting system opening: 1,400 x 1,800 mm
Machine dimensions: 2,190 x 2,150 x 2,400 mm
Total weight: approx. 5,600 kg
Control type: Siemens SIMATIC S7-1200 / CPU1214

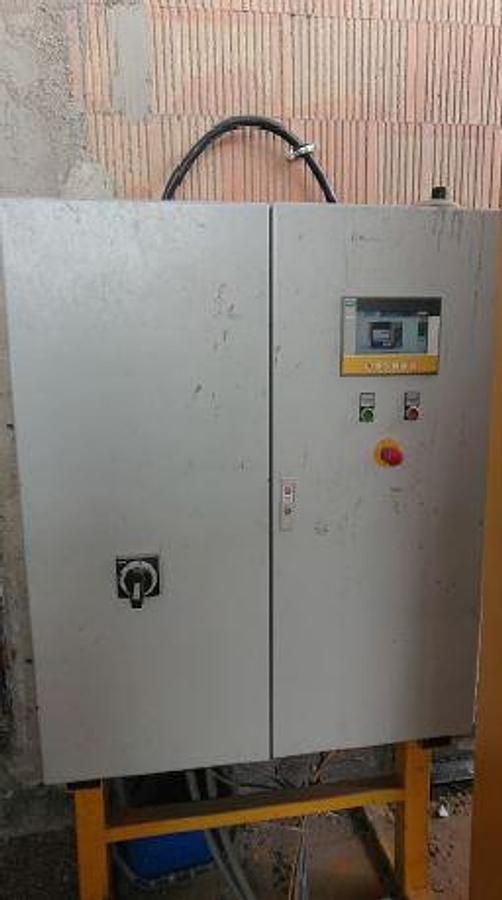

Control panel type: RITTAL
Required circuit breaker: 140 A
Recommended cable diameter: min. 4 x 45 mm2
Maximum cable length: 20 m
Hopper for QR1400
For shredder: QR1400
Design: Solid steel construction, welded on 3 sides
Height: approximately 1500 mm

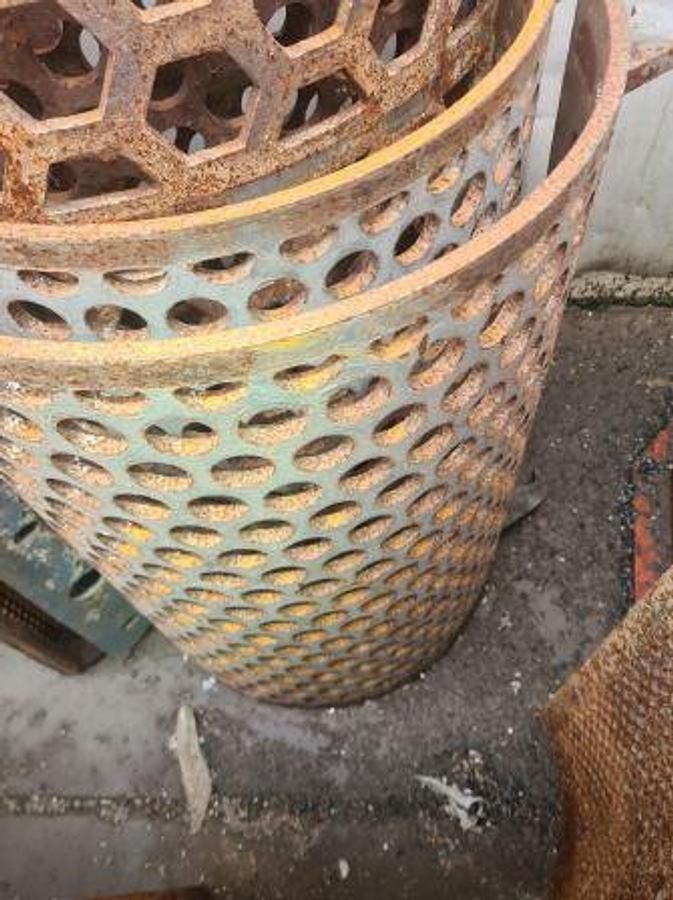

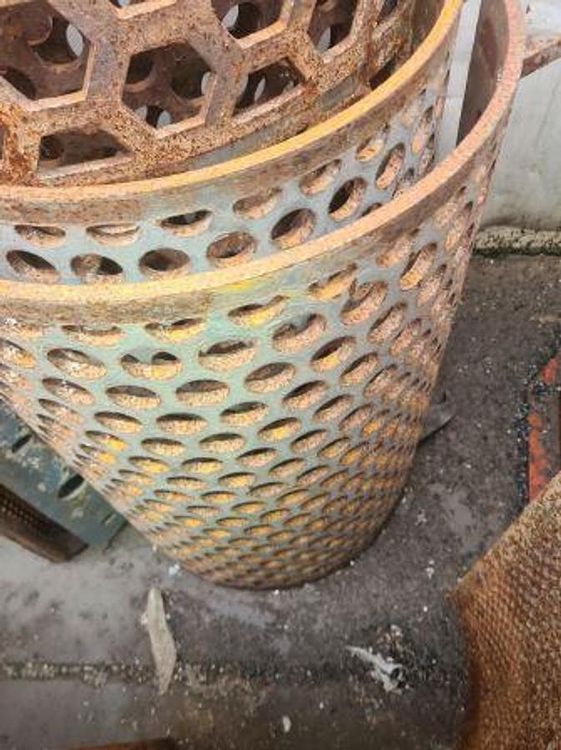

Grids: 30 mm diameter, round hole
70 mm diameter, hexagonal hole
