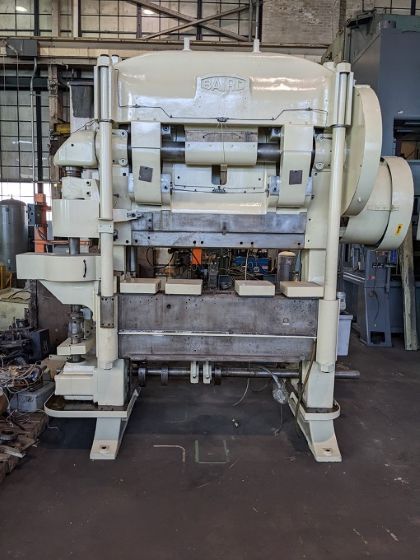

US Baird 5-51-MTP 75 Ton

U.S. BAIRD 5-51-MTP
Year: 1963

3" Stroke
30-90 SPM Vari-Drive
9 Station Die Set
5.5" Center Distance
Transfer Length 5-1/2"
No Slide Adjustment (Individual Punches Only)
Bijur Lube System
Minster Clutch
Feed Direction Back to Front
Single Pass Feed
Total Stack Clearance .005
Roll Clearance .001
Bottom Shaft Bushings Clearance .003
Side Shaft Bushings Clearance .003
Upper Gears Backlash .008
End Play in Bottom Shaft .006
Rebuilt in 2001 by Baird
New Air System
Clutch and Brake Rebuilt with New Flywheel Bearings
Oil System Cleaned and Checked
Ram and Roll Assemblies Inspected and Checked
New Press PLC Control with New Motor Controls in Existing Console
5" Stroke Conversion Option (Controls Not Included)
