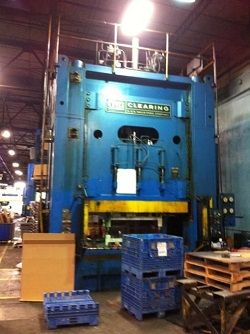

Clearing, USI HO-700-96-60 700 Ton

USI CLEARING HYDRAULIC PRESS
Model HO-700-96-60

Housing type
Single action with 150 ton bed cushion
Distance between positive
slide stops: 97" L-R
Area of bed (nominal): 97" L-R x 60" F-B
Bed bolster: 96" L-R x 60" F-B x 10" thick
(drilled for cushion pins)
Area of slide (nominal): 96" L-R x 60" F-B
Stroke of gib guided slide: 0-30" maximum
Daylight opening between
bed bolster & slide: 58" maximum
Area of cushion pad: 88" L-R x 42" F-B
Stroke of cushion: 0-9"
Floor to top of bed: To suit customer
Power unit (top rear of press): Oilgear model DV15020 piston pump,
105 GPM, driven by
150 HP 90 RPM motor, and
Vickers model 35V pump, 28 GPM,
Driven by 40 HP 1200 RPM motor
Speeds approx.: 0-800"/minute rapid advance
0-49"/minute pressing
0-740"/minute rapid return
EQUIPPED WITH: Free standing operator control stand
with pushbuttons operation
Stroke, speed, & pressure control
Weights approx. 136,000 lbs. frame assembly
36,000 lbs. slide assembly
15,500 lbs. slide bolster assembly
30,500 lbs. bed bolster assembly
22,000 lbs. reservoir assembly
Overall dimensions approx. 180" L-R x 150" F-B x 231" H
(with top of bolster @ 28" work height)
