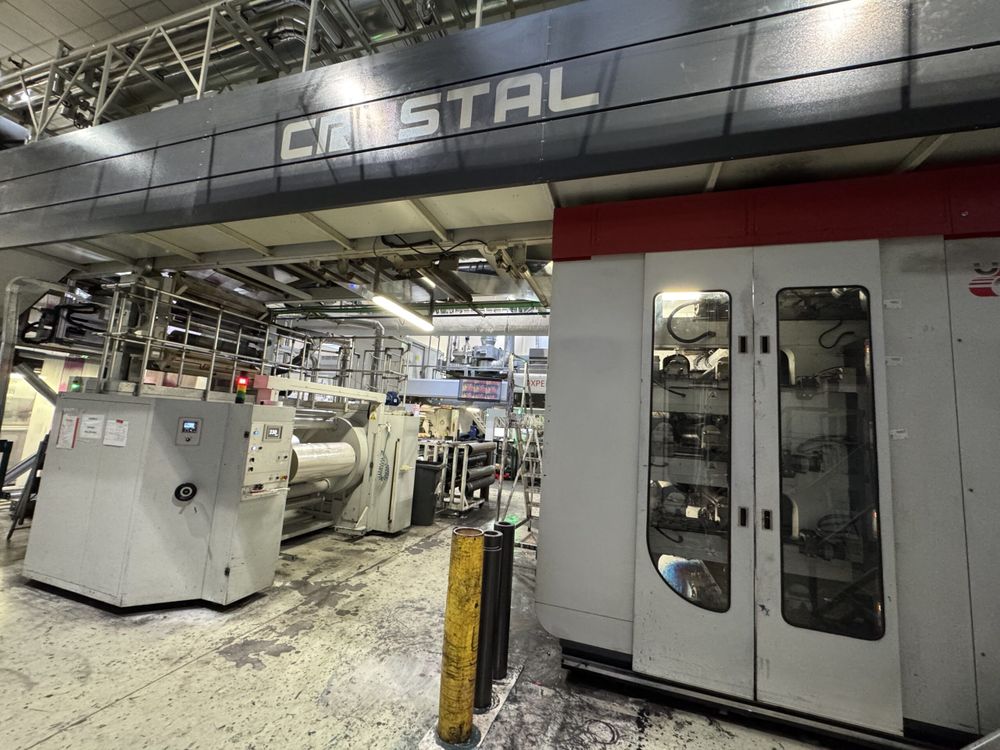

Uteco 108 + ROTO 10 1000 mm

1.04 Number of print elements 10 on the central drum + 1 on the Rotogravure element
1.05 Gearless Yes
1.06 Print width (mm) Max.: 1000 mm
1.07 Material width Min.: 50% of the maximum material width Max.: 1050 mm
1.08 Video camera YES 100% CONTROL
1.09 Mechanical speed Max: up to 500 m/min
1.10 Type of material Plastic films
1.13 Types of inks used Solvent based
1.14 Min. – max. print development (mm) [N° 10] MIN. 360 – MAX. 800
1.15 Printing possibility (10 + 0) (10 + 1)
1.16 Viscometers [DT-U1000] N° 10
1.17 Corona Treatment : Yes
1.18 Type of unwinder TURRET CHANGE
1.19 Maximum diameter on the unwinder (mm) 1000
1.20 Type of unwinder utomatic turret unwinder
1.21 Maximum diameter on the winder (mm) Yes, 100% BST control
1.22 Heater
Diathermic oil
1.23 Accessories – Reprint in register
– Kiss and go
