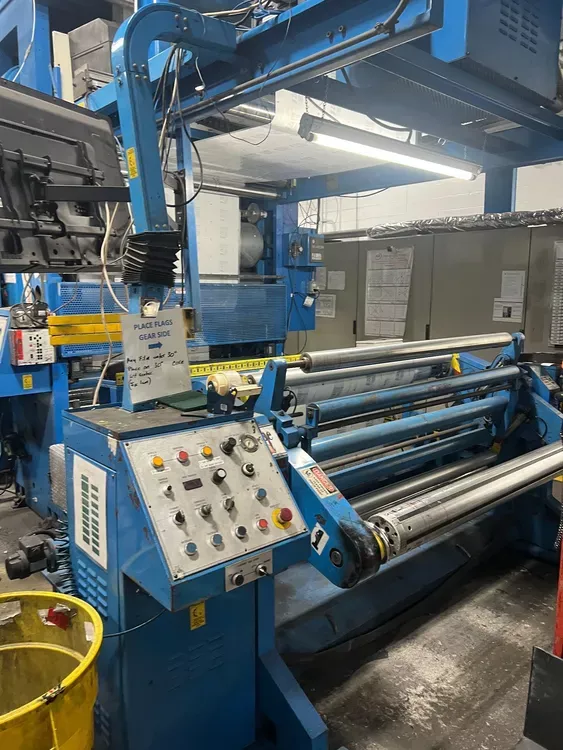

Uteco AMBER 808 RR 140 8 1450mm

• Gearless/geared: Geared
• Number of colors: 8
• Web width: 1450mm
• Production speed: 250m/min
• Material: PE, PP, LDPE, HDPE, OPP, PET, OPA BOPP, Nylon, Metalized, Composite
• Material thickness: 0.60mm
• Max. mechanical speed: 275m/min
• Drying system: Natural Gas. Between color deck and tunnel, IMECO
• Web guide system: Coast Controls pneumatic unwind guide model CRPP50; Rewind edge guide BST AccuWeb Micro 1000, actuator MTR3108
• Corona treatment: Enercon corona treater, Station model and serial LM3438-53, 10269-4A
• Doctor blades: 13 doctor blade chambers
• Ink Pumps: 10 Graymills pneumatic pumps
• Autowash: No
• Unwinder diam. max.: 760mm
• Rewinder diam. max.: 715mm
• Rewinder type: Dual shaft rotating
• Hydraulic operated plate cylinder caps, print on/off, anilox drive motors
• 6” and 3” Maxcess External Element Pneumatic Roll Shafts

Utilities:
• Electric: Customer Line voltage 480V 60Hz, Mains voltage 380V 60Hz, 180KVA, 270A, 110VAC control voltage
• Compressed Air: 6 bar
• Natural Gas
