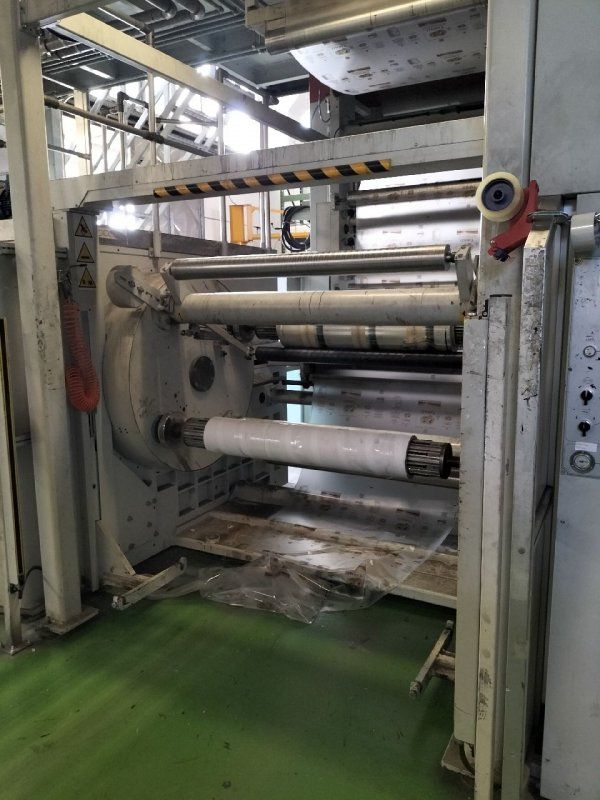

Uteco CRYSTAL 108 10 1200 mm

umber of colors 10
Print possibilityes 10+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 380
Max print repeat (mm) 800
Unwinder type Turret Automatic with roll loading system
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Automatic with roll unloading system
Max reel diameter rewinder (mm) 1000
Drying 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners
Videocamera YES
Corona treatment Yes Ferrarini Benelli
Web guides yes in and out
Vyscosity control Yes
Washing system Yes automatic
Inking system Closed chamber doctor blades and pneumatic ink pumps
Anilox 12 ceramic anilox sleeves
Print Sleeves 3 sets of sleeves , 1 set of Carriers
