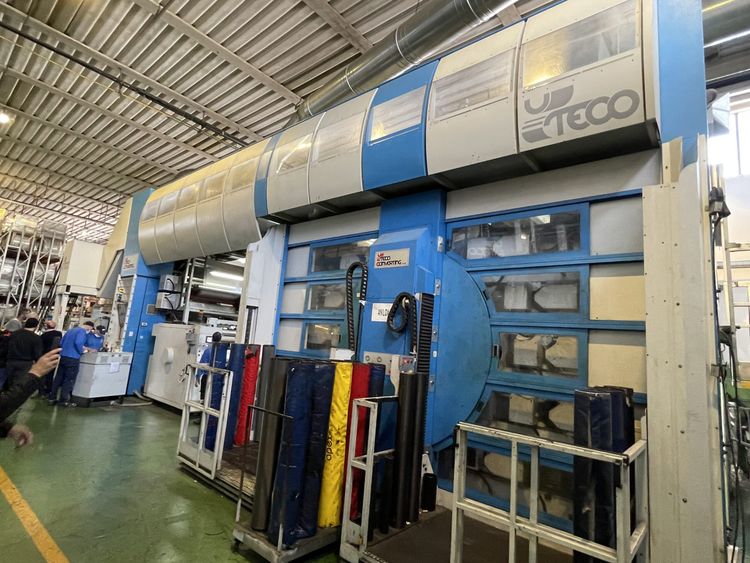

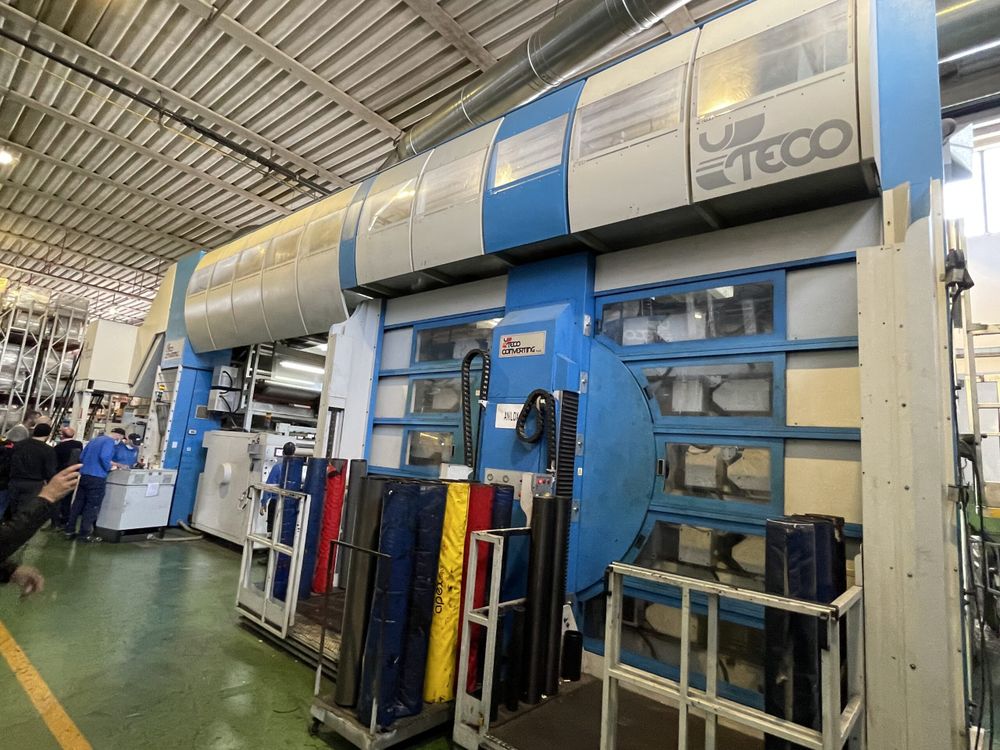

Uteco Diamond 10 1250 mm

1.04 Colors (nr) and Type 10 Colors
1.05 Gearless Yes
1.06 Print width (mm) 1250 mm
1.07 Material passage (mm) 1300 mm
1.08 Print development min. – max. (mm) 360 - 860 mm
1.09 Mechanical speed (m/min) 500
1.10 Material type (kg) Electrical power: 3 x 400 V, 50 Hz.
1.13 Inks solvent based
1.14 Doctor blade groups: quantity 10
1.15 Washing of printing units Yes, automatic
1.16 Type of unwinder Automatic
1.17 Max. diameter on unwinder (mm) 1000
1.18 Winder type Automatic
1.19 Max. diameter on winder (mm) 1000
1.20 Heating Gas burners
1.21 Video camera Brand: AVT
1.22 Materials to print Plastic films and paper for flexible packaging
1.23 Further information :
Online spectrophotometer
Inline cutting
