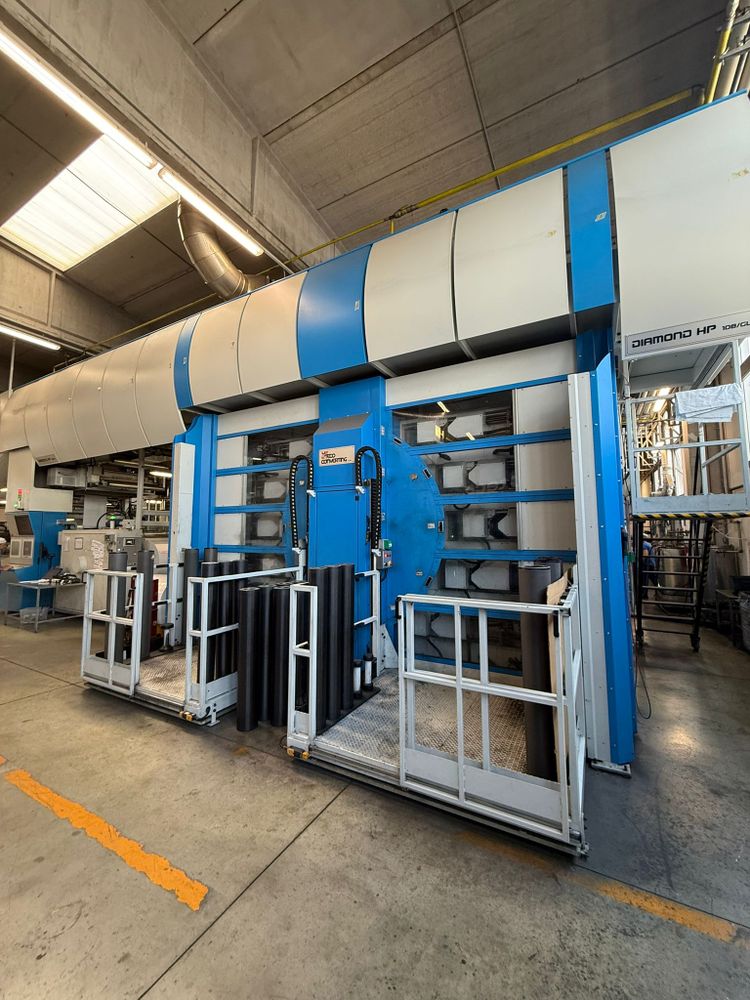

Uteco DIAMOND HP 108 8 1500 mm

1.02 Model [FP15S] 150
1.03 Year of construction 2015/16
1.04 Colors (number) and type [8 COLORS] 10 colors
1.05 Gearless Yes
1.06 Print width (mm) 1500
1.07 Material passage (mm) 1550
1.08 Print development min. – max. (mm) [MIN. 320 – MAX. 380] MIN. 420 – MAX. 900 mm
1.09 Mechanical speed (m/min) [400 m / min] 600 m/min
1.10 Material type (kg) [PLASTIC FILMS AND PAPER] Plastic Films and Paper
1.13 Inks [Solvent base] Solvent base
1.14 Doctor blade groups: quantity [N° 10] N° 10
1.15 Washing the printing units [Yes, Fasnacht Viscometers] Yes, automatic washing of the printing units
1.16 Type of unwinder DT-U1000
1.17 Maximum diameter on the unwinder (mm) 1000
1.18 Winder type [Automatic] DT-U1000
1.19 Maximum diameter on the winder (mm) 1000
1.20 Heating [Gas burner] diathermic oil
1.21 Video camera [Yes, 100% BST control] yes 100%
1.22 Availability [November 2025] End of the year
1.23 [More Information] :
[Anilox sleeves, 8 pieces] Anilox 16 pieces
[Cliché Sleeves, 80 pieces] Sleeves 76 pieces
Carrier 10 pieces
Squeegee 10+2 pieces
Ink pumps 10+ 1 pieces
Inkwells 10 pieces
