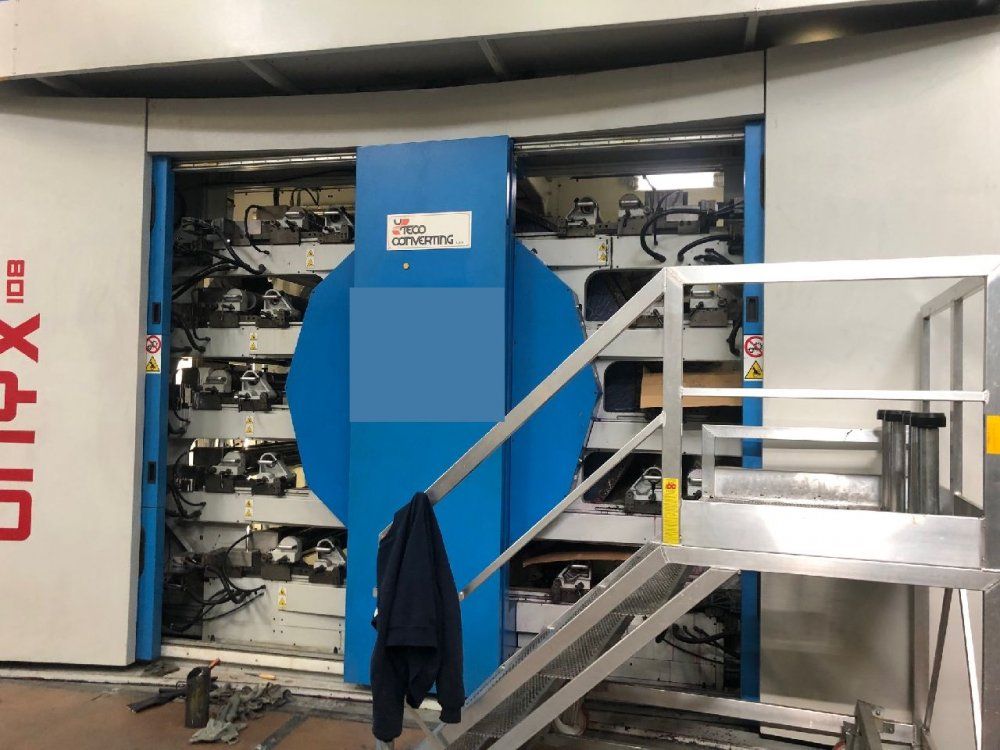

Uteco ONYX 108 GL 10 1320 mm

Number of colors 10
Print possibilityes 10+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1350
Print width (mm) 1320
Min print repeat (mm) 350
Max print repeat (mm) 800
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 1000
Drying 2 zones , 4 fans , final tunnel 6 mt length, gas burners
Videocamera Eltromat, with defect control
Corona treatment Me.ro
Web guides BST
Vyscosity control automatic
Washing system automatic
Inking system Closed chamber doctor blades
Anilox 22 anilox sleeves: 7x420 L/cm, 5x280 L/cm, 3x160 L/cm, 4x140 L/cm, 1x120 L/cm, 2x100 L/cm
Print Sleeves : 24 adaptor/Bridge/carrier sleeves. 357 sleeves- 9x350mm, 10x360mm, 10x370mm, 8x380mm,
15x400mm, 16x410mm, 19x420mm, 10x430mm, 10x440mm, 10x450mm, 9x460mm, 10x470mm, 9x480mm,
10x490mm, 10x500mm, 20x510mm, 20x520mm, 10x530mm, 10x540mm, 10x550mm, 10x560mm, 20x570mm,
20x580mm, 12x600mm, 10x620mm, 10x640mm, 10x650mm, 10x660mm, 10x670mm, 10x680mm
Max speed 400 m/min
Kiss and Go: Automatic printing deck position system (automatic print pressure control)
