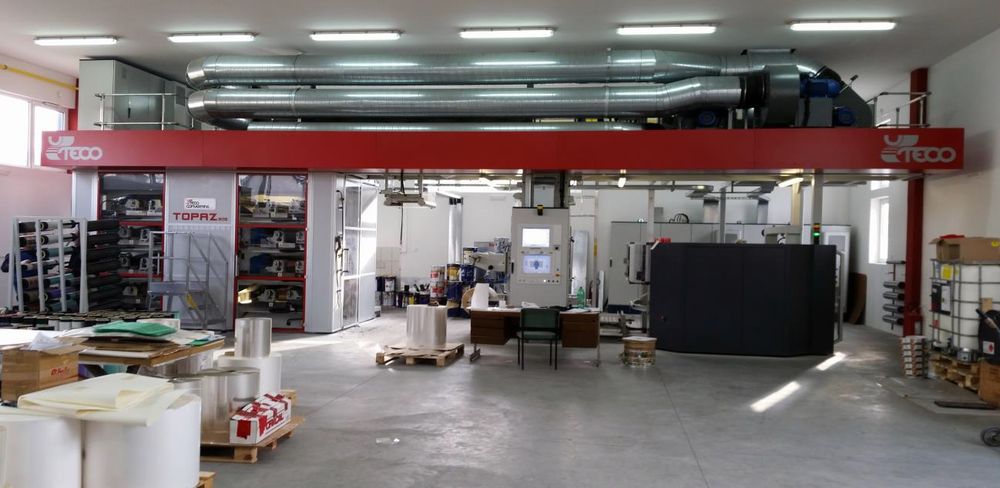

Uteco TOPAZ 808 GL 8 600 mm

1.04 Colors (nr) and Type 8 Colors
1.05 Gearless Yes
1.06 Print width (mm) 600 mm
1.07 Material passage (mm) 650 mm
1.08 Print development min. – max. (mm) 290 - 800 mm
1.09 Mechanical speed (m/min) 300
1.10 Material type (kg) Paper and plastic films
Electrical power: 3 x 400 V, 50 Hz.
Air pressure: 6 bar
1.13 Inks Solvent base
1.14 Doctor blade groups: quantity N° 8
1.15 Washing of printing units semi automatic
1.16 Type of unwinder Automatic
1.17 Max. diameter on unwinder (mm) 800
1.18 Winder type Manual
1.19 Max. diameter on winder (mm) 800
1.20 Heating Gas burners
1.21 Video camera Yes
1.22 Availability Immediate
1.23 Further information :
No. 11 anylox
N° 144 printing sleeves
N° 16 ink pumps
Grafikontrol register control
Chiller Industrial frigo
Various spare parts
