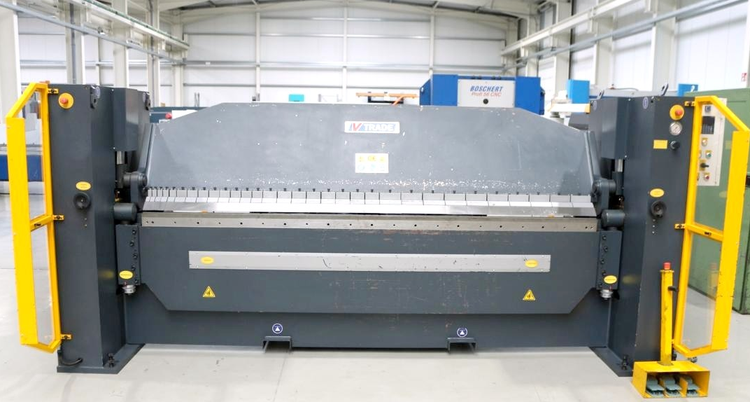

V-TRADE SBH 3165 G

Sheet width: 3140 mm
Plate thickness: 6.5 mm ST
Thickness at stainless steel: 4.0 mm VA
Bending angle max.: 0 - 135 °
Daylight opening: 100 mm
Back stop adjustable max.: 800 mm
Control: M 15 S
Total power requirement: 7.5 kW
Weight of the machine: 6,350 kg
Dimensions of the machine: 4350 x 2250 x 1900 mm
Robust folding machine
High precision for wide bending processes
Increased rigidity in design
Hydraulic drive
Rack and pinion for better control and accuracy
Easy adjustment of material thickness
Adjustable hydraulic pressure
Prevents damage to the surface of materials
Smallest return bend: 25 mm
Program control "M 15 S" with LED display for bending angle adjustment
Manual backgauge 0 - 800 mm
Manual lower beam adjustment
Light barrier front and rear
1x freely movable triple foot switch
2x forklift pockets for easy transportation
Operating instructions (PDF)
