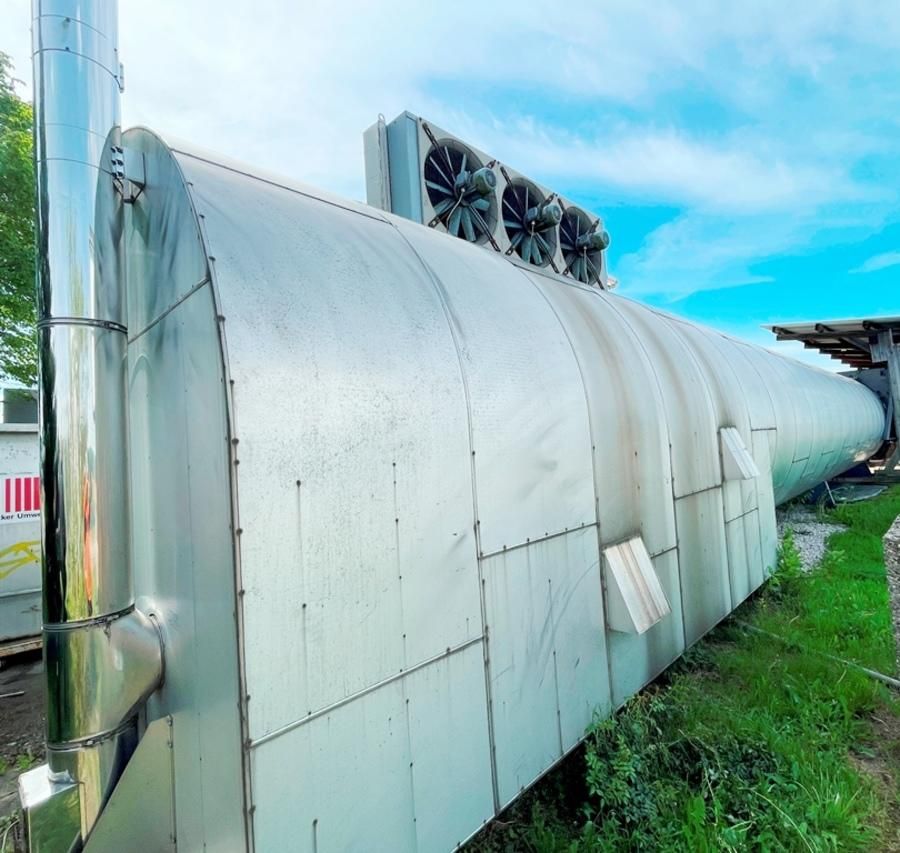

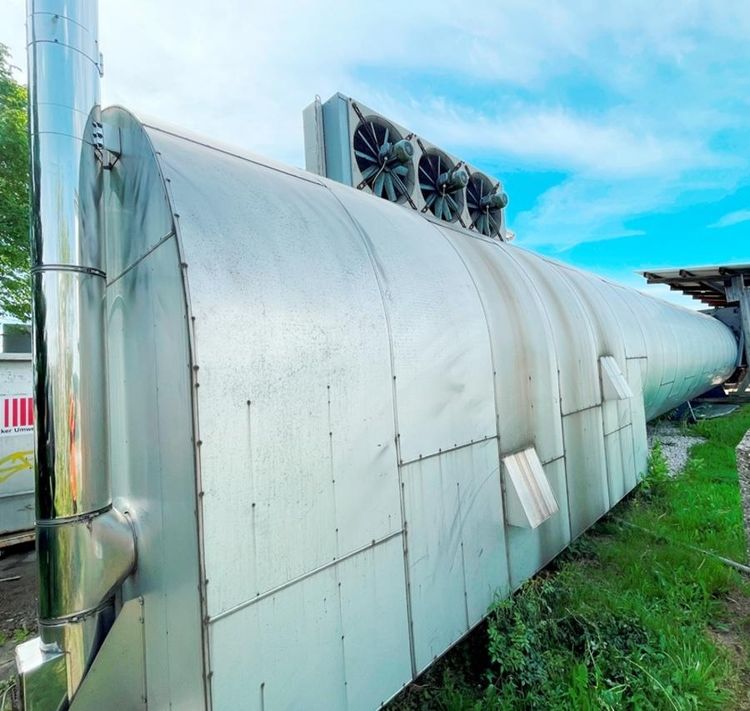

Vacuum dryer / drying chamber

Vacuum dryer / drying chamber DWT / IWT MD
Used The machine is still connected to power and heating, but has not been used for 3 years

Dryer diameter 2600 mm
Dryer length 13000 mm
Package length 13000 mm
Package width 1200 mm
Package height 2100 mm
Gross capacity 33 m3
Net capacity 20 m3 sawn timber or 15 m3 logs

Electrical connection 44 kW
Electrical consumption 15 kW/h
Water drain 50 mm
Water connection 25 mm
Heat connection 87 kW, 85 °C hot water at the dryer
Heat consumption 500 kcal per liter of moisture or 0.6 kW per liter of moisture

Including BUDERUS B305/160 boiler, heat output 141 - 160 kW
The boiler is operated with natural gas
The system is supplied as a fully assembled unit

Boiler cylindrical on 3 supports
Hydraulic, fully automatic boiler lock
Boiler material solid stainless steel to DIN, x5 Cr Ni 189
150 mm insulation, clad with 1 mm galvanized sheet steel
Rails in stainless steel, spacing 600 mm

1 rail bridge in front of the boiler
4 trolleys for loading and unloading, length 3200 mm each
12 fans with Siemens motors, 2 spare motors
Heating coil as stainless steel finned tubes with aluminum fins, length 150 m, surface 250 m2, diameter 25 mm
Flow and return pipe diameter 80 mm
Heating medium 85 °C Hot water at the consumer
Circulation pump capacity 75 m3/h

Vacuum pump BUSCH LX 0260 B, year of construction 2013
Nominal suction capacity min. 200 m³/h / max. 455 m³/h / final pressure 33 hPa (mbar)

1 electric condenser for condensing the vapor
3 fans for cooling or condensing the vapors
PLC control
Tracks in front of the dryer 14000 x 600 mm

The entire system stands on a concrete floor and can be lifted with a crane and loaded onto trucks
Transport dimensions approx. 18000 mm long, 3050 mm high (without cooling system)
