Valmet Coated Board Machine, 7 cylinder formers 2900 mm 400 - 1000 gsm 75 TPD, HUGE DISCOUNT NOW 50%!

Ref : 1464740-2-CP
Condition : Used
Manufacturer : Valmet
Type : Coated Board Machine, 7 cylinder formers
Width : 2900 mm
Gramages Range ( Gsm ) : 400 - 1000 gsm
Capacity : 75 TPD, HUGE DISCOUNT NOW 50%!
Year(s) : 1
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 12 Aug. 2019

2900 mm 75 TPD VALMET Coated Board Machine with 7 forming cylinders
WITHOUT Stock preparation - not included because used for PM2 AT SAME LOCATION ALSO FOR SALE ( wotol ref 1691897-2: 2.590 mm 80 tpd Duplex board machine, also with huge discount .. 45% for quick sale and removal )

Max width at pope: 2900 mm

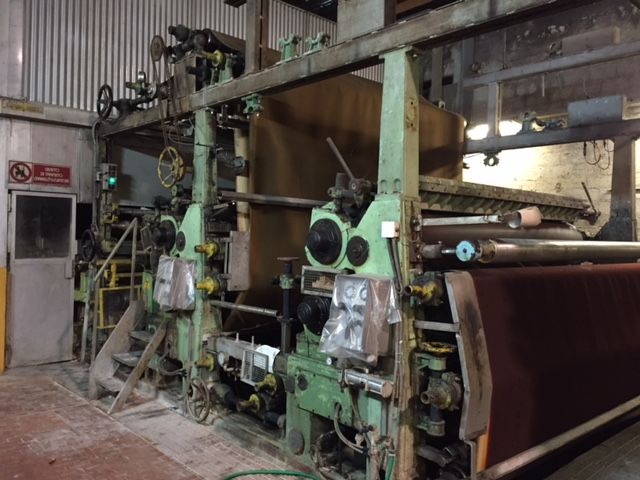

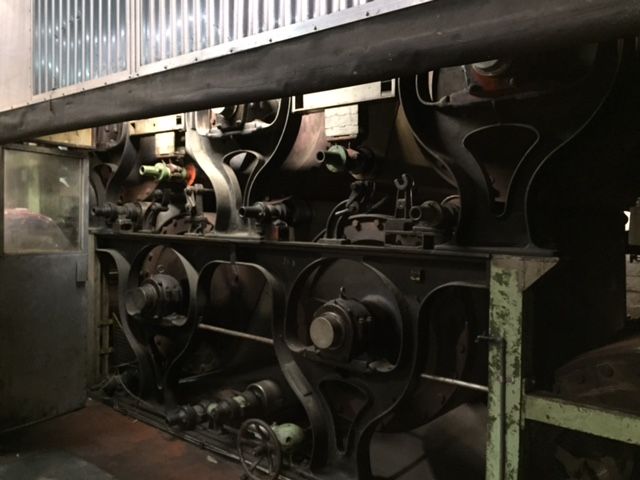

7 forming cylinders (diameter: 1250 mm)
Capacity: 75 Tpd
Speed: 17 to 45 m/min
Grammage: 400 - 1000 gsm
Product: white/white, grey/grey, brown/grey, white/grey

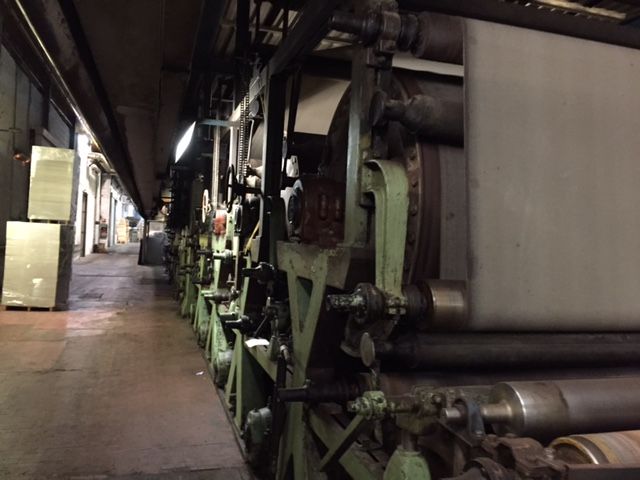

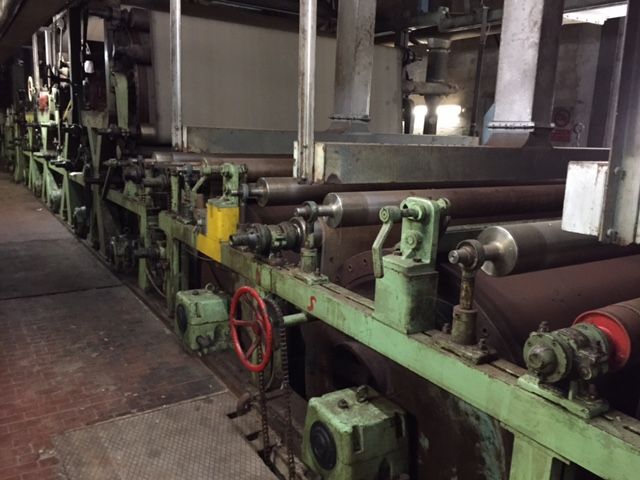

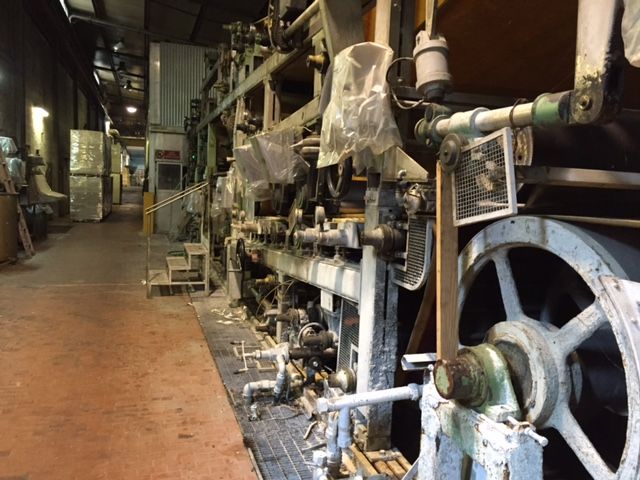

N°26 dryer cylinders (diameter: 1500 mm)
MG cylinder (diameter: 3500 mm)

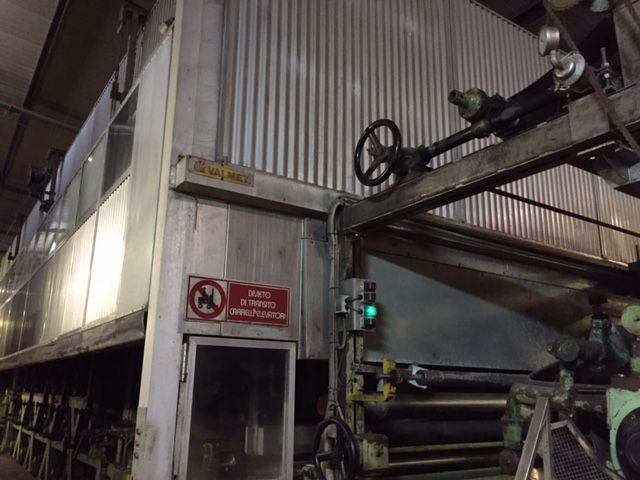

Hood by Valmet
2 x metering bar coaters BMB, unused because there is no coating color preparation. Installed in 1991
N°4 dryer cylinders after coater

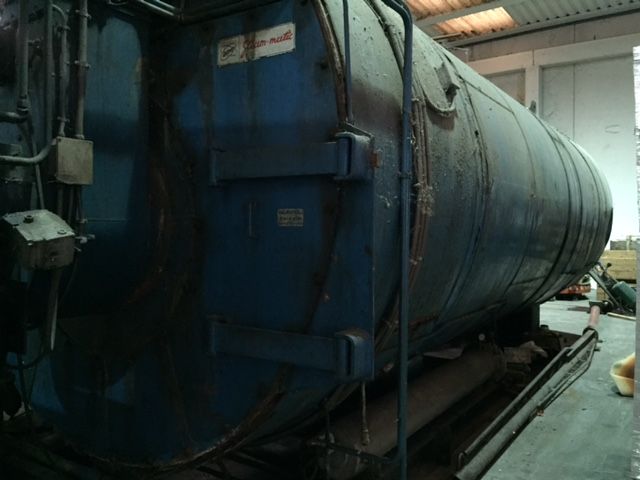

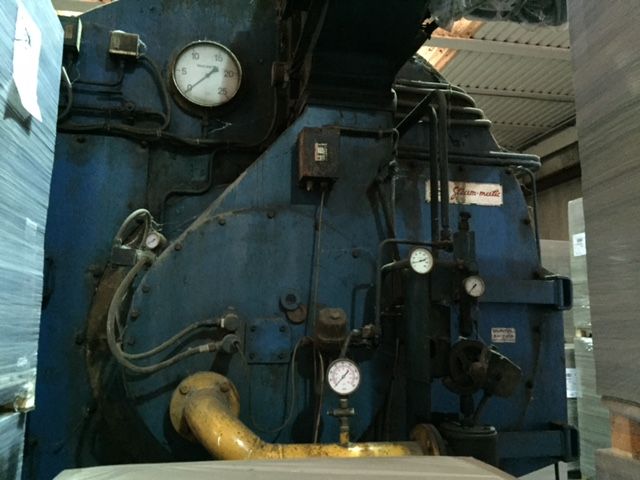

Bono boiler 12 t/h, 10 bar

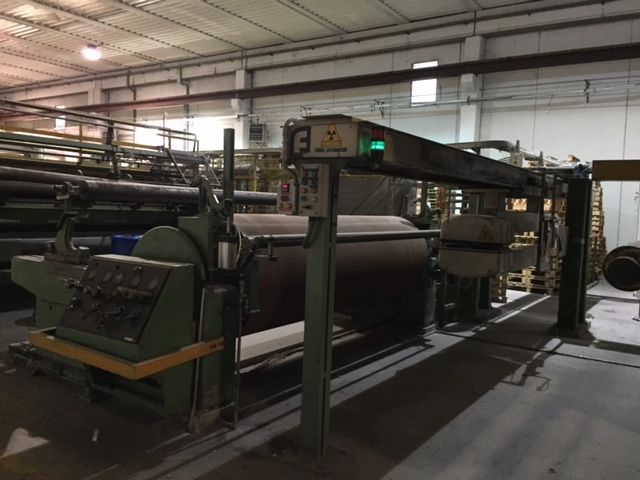

QCS: first scanner before dryer section with Sr90 head for grammage and moisture; second scanner before pope, Kripton head
5/6 pope spools

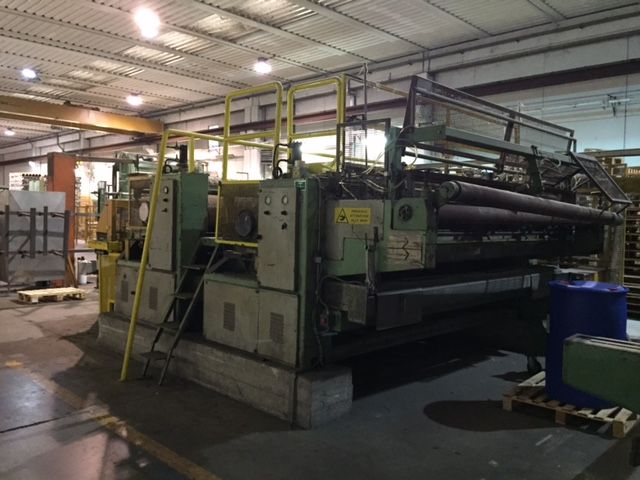

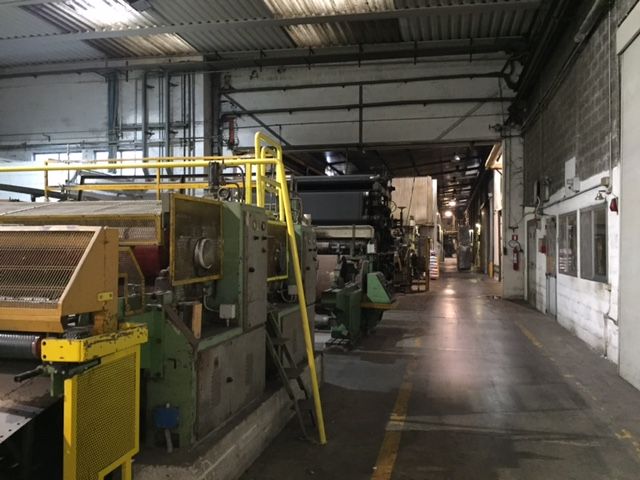

Machine can work with pope winder or bypass the pope and cut directly sheets on a Pizzolato sheet cutter Duplex, 6 slitters

Machine stopped April 1° 2014
Installed in 1962
HUGE DISCOUNT NOW.. 50%

Scope of supply: from fan pump to pope and sheeter on line
RCM screen before headboxes, with 2.5 m holes

Stock preparation not included because used for PM2

First and last mould formers (N.1 and n.7) can be fed by different furnish, i.e. possibility to make white top or white bottom, or both white

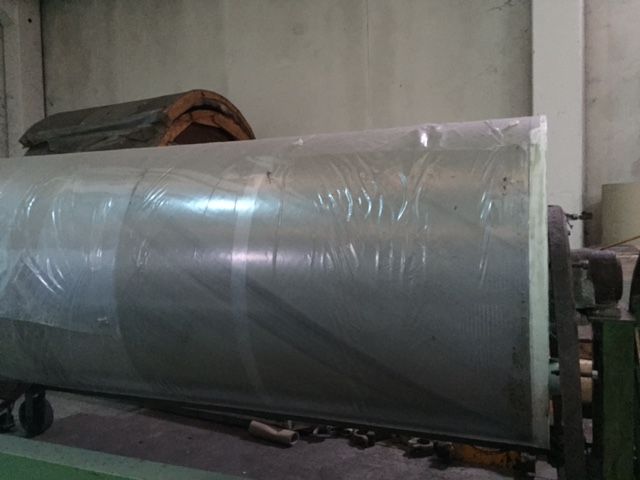

Several spare parts, including: 1 forming drum, several felts, etc.

Same location as another board paper machine 2590 mm 320-1000 gsm 75 Tpd 1 1998 2015 [Ref :1883963-2-CP] : ALSO HUGE DISCOUNT FOR IMMEDIATE SALE
