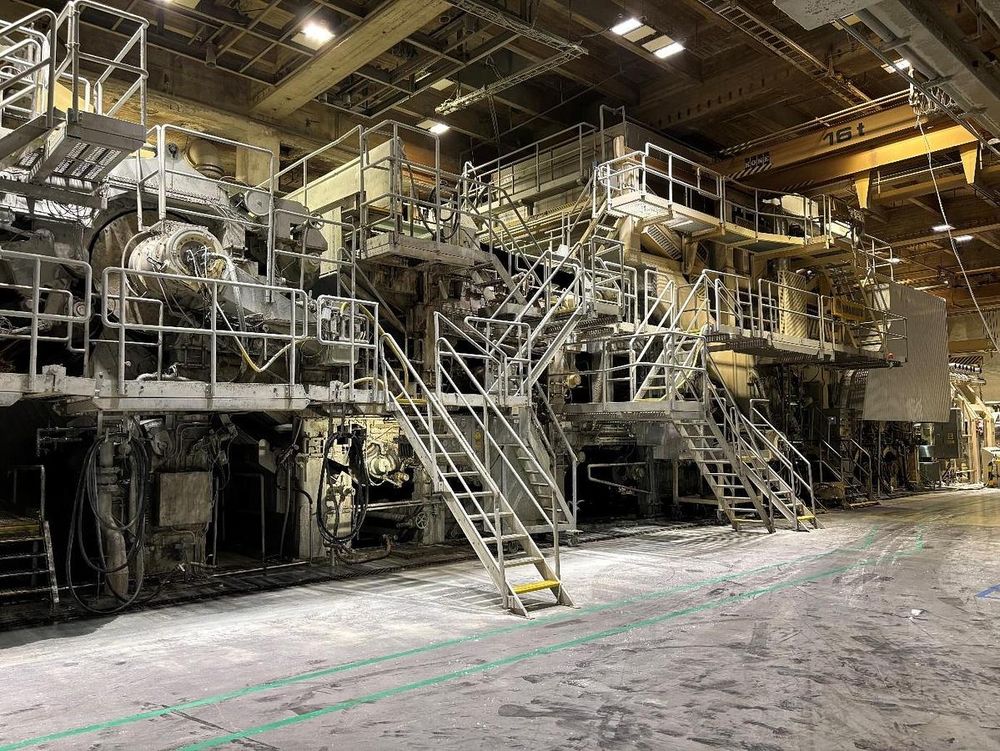

Valmet Twin-wire, wet crep 140"

TECHNICAL DATA
Manufacturer : Valmet
Type : Twin-wire, wet crep
Year of construction : 1988
Paper width on reel : 3460 mm
Production speed : up to 1300 m/min
Grammage : 17 to 50 GSM
Drying Capacity : 100 ton/day
Raw material : Virgin pulp / De-inked pulp
Drive voltage : 500 V 50 Hz
Machine Drive type : (DC-500 V)
Hood Drive type : ABB DC
DCS : Valmet DNA
Key products : hand towels, system towels and other tissue grades

SCOPE OF SUPPLY
HEADBOX:
Supplier : Valmet
Pond side width: : 3550 mm
Layers: : 1

WET SECTION / PRESSING:
Suction press : 89 kN/m
Blind press : 89 kN/m

YANKEE CYLINDER:
Diameter : 4871,2 mm
Width : 4000 mm
Max Pressure : 6,2 Bar

DRYING HOODS:
Brand : Valmet
Energy : Gas / max temp 500 °C
Profiling : No

DOCTOR BLADE:
No 1. Cutting
No 2. Creping with oscillation
No 3. Cleaning

POPE REELER:
Max. roll diameter : 3000 mm
Max. Width : 3460 mm

ACCESSORIES:
Spare parts:
Forming Roll (1 Roll)
Wire Roll (1 Roll)
Felt Roll (2 Rolls)
Suction Press Roll (1 Roll)
Blind Drill Roll (1 Roll)
Spools : 10 pcs

APPROACH FLOW
Fan Pump (Scanpump JMW Z22-600/600/65)
Power : 634 Kw
Type : DC Motor
Vertical Screen (Valmet JS400)
Power : 90 kW
Type : AC Motor
Vacuum #1 (Nash 904)
Power : 250 kW
Type : AC Motor
Vacuum #2 (Runtech Turbo the Switch)
Power : 500 kW
Type : AC Motor

FIBER RECOVERY: Hedemora disc-filter (Capacity 8500 l/min),
complete with accessories

Pulper #1 (Valmet (ex. Tampella) HD3650GK)
Capacity : 17 m3
Power : 200 kW
Note : with Conveyor
Refiner #1 (Valmet Optifiner RF01)
Power : 315 kW
Refiner #2 (Valmet RF03)
Power: 400 kW
Deflaker #1 (Valmet JF110)
Power: 110 kW
Deflaker #2 (Valmet (ex. Jylhävaara) JF75)
Power: 75 kW
Deflaker #3 (Valmet (ex. Jylhävaara) JF75)
Power: 75 kW

ACCESORIES
Include: Scanner (Valmet PaperIQ Select), pumps, tanks, agitators,
instruments, valves

SLITTER REWINDER SW1
Manufacturer : Jagenberg
Year of construction : 1988
Max. width : 3460 mm
Max. reel diameter : 1750 mm
Production speed : 1200 m/min
Basic weight range : 17 – 50 gsm
Max plies : 2
Drive type : Siemens AC Drive
Unwind Stand : 2 stands
Max parent reel dia.: 2800 mm
Eight knife holders for slitting
