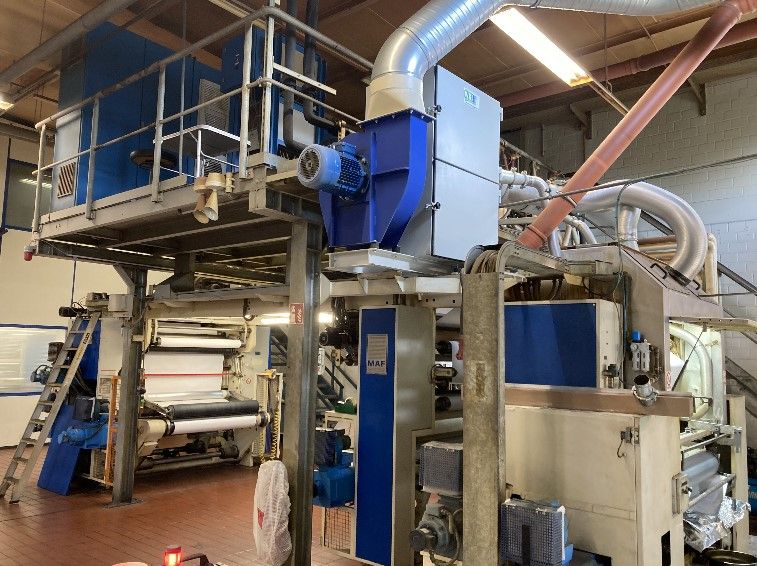

Valmet Ultrabond C Mod.1300 Laminating Machines

Working width: 650 – 1,305 mm
Maximum width for PET/ALU/PE and ALU/PE: 1,100 mm
Production speed: 120 – 220 m/min
Maximum working speed: 300 m/min
Primary unwinder: Maximum roll diameter: 1,000 mm

Core diameter:
- Cardboard core: 76 mm / 152 mm
- Steel core: 150 mm

Adhesive application:
- approx. 1.5 – 2.5 g/m2 (2K-adhesive for film/film)
- approx. 2.5 – 4.0 g/m2 (1K-adhesive for paper/film)

Secondary unwinder:
Maximum roll diameter: 1,000 mm

Core diameter:
- Cardboard core: 76 mm / 152 mm
- Steel core: 150 mm

Rewinding:
Maximum roll diameter: 1,200 mm

Core diameter:
- Cardboard core: 152 mm
- Steel core: 150 mm

Materials to be processed:
Polyester film: - Minimum thickness: 10 μm
Aluminum foil: - Minimum thickness: 6.6 μm
PE-film:
- Minimum thickness: 40 μm (Primary unwinder)
- Minimum thickness: 30 μm (Secondary unwinder)

Paper: - Maximum grammage: 150 g/m2
