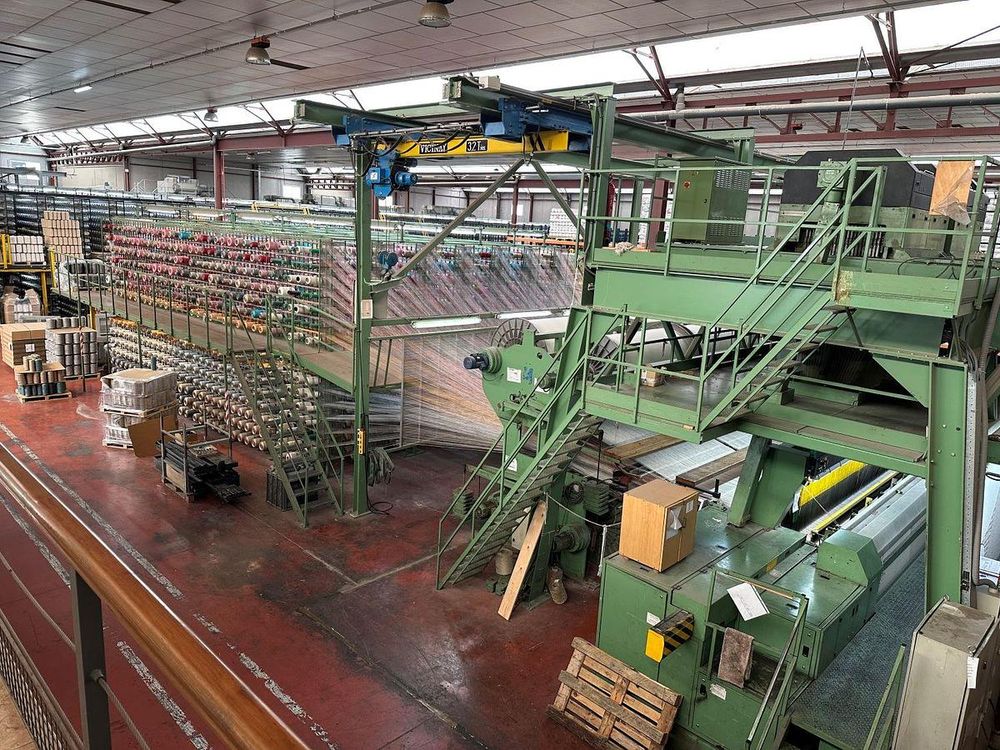

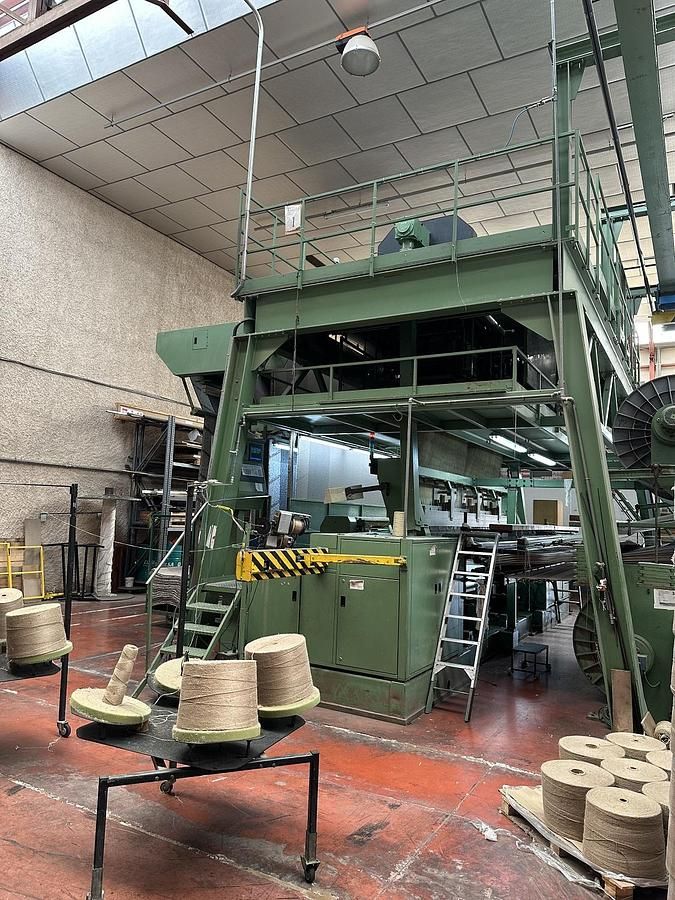

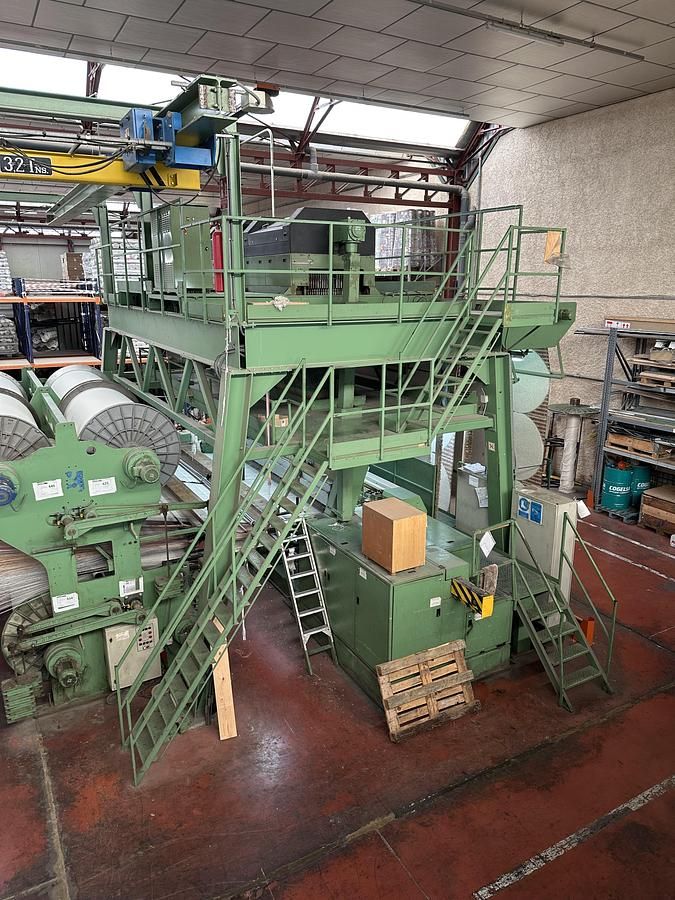

Van de wiele CRM72 400cm Carpet loom

fabric width 400cm, roller guiding, receiving rapier opening is positive with a pressure part (no rollers), weave structure 1/2V.

Take up folding system to take up carpets.
Knife stones
Number of stones : 2 round stones & 2 flat stones

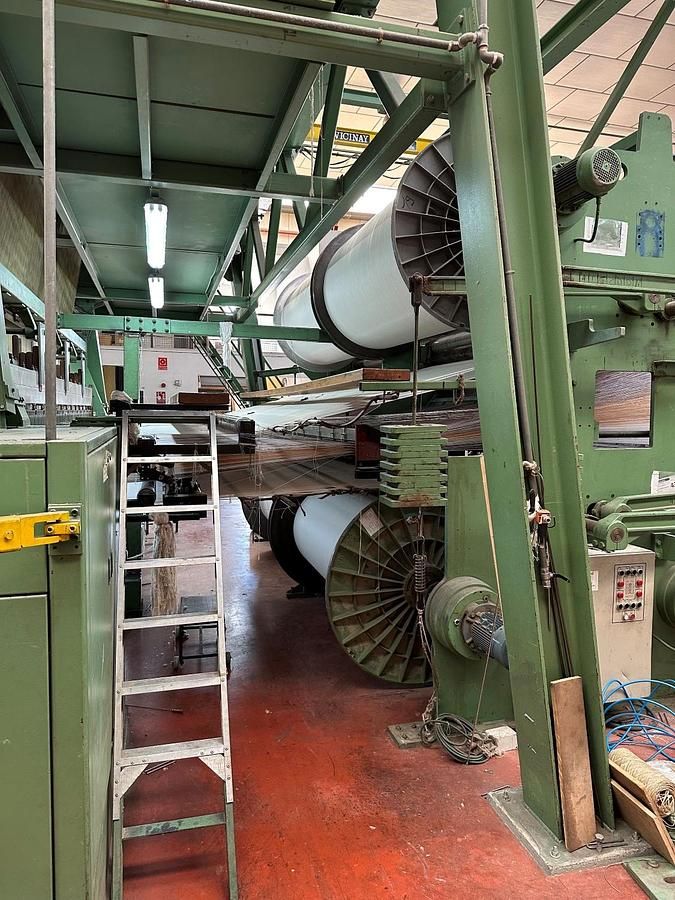

Warp beam stand type of beam stand : high beam stand for 8 beams
maximum beam diameter 1250mm * high beam stand beam let off system motor driven
adjustment tension with weights
Reed number of reed : 1
carpet density : 320 d/m
carpet width : 4000mm
pitch in pile part 1280 dents
width of selvedge 2 x 50mm

· Prewinder number of prewinders 2 number of bobbin stands : 1 with 2 platforms of 4 bobbins each

· Electronic jacquard machine number of heads : 2 PTR Electronic heads number of solenoids used : 6400 harness cords
weave structures : ½ weave structures incorporated
controller : 1 electronic controller
drive for jacquard : cardan double sided

· Harness number of colours : 5number of harness cords : 6400
return standard springs heald eyelet 1080R

· Ground warp beams
drive for the ground warp is coming from the bottom
heald length 640mm 380R
number of frames : 6

· Stop motion
number of pile stop : 1 with 6400 dropwires
number of warp stop motion : 1 for top & 1 for bottom

· Last overhauling : 2021 electronic conversion from Baldor to Lenze by VDW technician
