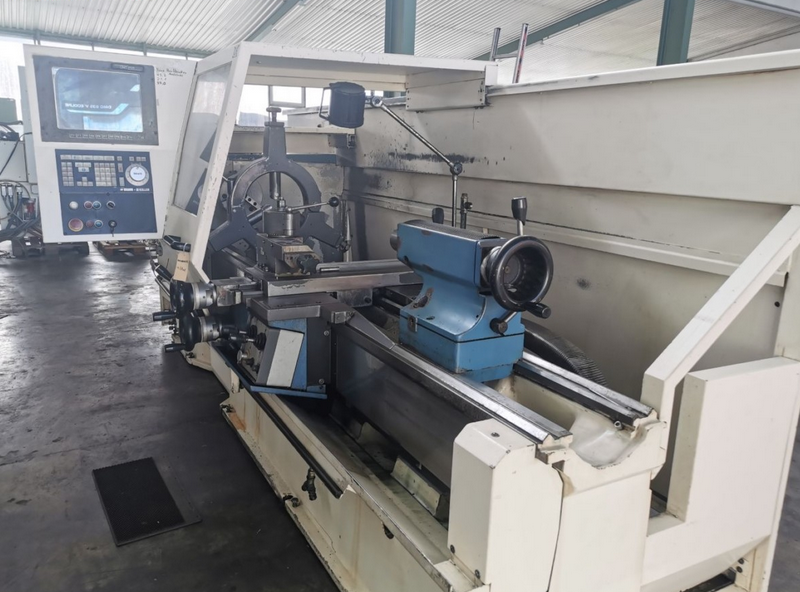

VDF Boehringer num + CNC Keller 2500 rpm DUS 560 2 Axis

Turning Diameter: 570 mm
Turning Length: 2000 mm
Control: num + CNC Keller
Center Height: 280 mm
Turning Diameter Over Cross Slide: 365 mm
Spindle Bore: 62 mm
Spindle Speed Range: 3 – 2500 rpm
Spindle Nose: DIN 55 027 Size 8
Constant Cutting Speed: 1 – 9999 m/min
Feed Range X-Axis: 0.01 – 50 mm/rev
Feed Range Z-Axis: 0.01 – 50 mm/rev
Rapid Traverse Longitudinal: 10 m/min
Rapid Traverse Cross: 5 m/min
Feed Force X-Axis: 7100 N
Feed Force Z-Axis: 12,500 N
Cross Slide Travel: 345 mm
Top Slide Travel: 125 mm
Bed Width: 360 mm
Tailstock Quill Diameter: 80 mm
Tailstock Quill Travel: 190 mm
Tailstock Taper: MK 5
Max Workpiece Weight Cantilevered: 400 kg
Max Workpiece Weight Between Centers: 1000 kg
Additional Workpiece Weight Per Steady Rest: 300 kg
Metric Thread Cutting Range: 0.1 – 400 mm
Machine Length: 3.98 m
Machine Width: 1.87 m
Machine Height: 1.81 m
3-Jaw Chuck 250 mm
Multifix Toolpost
Fixed Steady Rest
Coolant System
