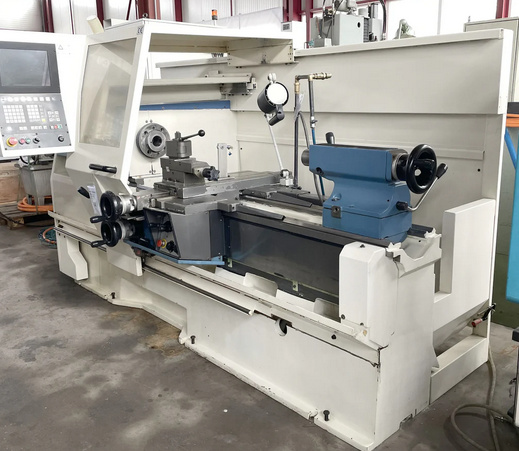

VDF Boehringer Siemens 2500 rpm DUS 560 2 Axis

X-Axis Rapid Traverse: 5 m/min
Z-Axis Rapid Traverse: 10 m/min
Control: Siemens
Cycle Controlled Lathe
Distance Between Centres: 1500 mm
Maximum Turning Length: 1500 mm
Centre Height: 280 mm
Swing Over Bed: 570 mm
Swing Over Cross Slide: 365 mm
Spindle Hole: 62 mm
Spindle Diameter: 100 mm
Spindle Speeds: 3 – 2500 rpm
2-Step Spindle Gearbox
Spindle Power: 19 / 15 kW
Maximum Torque: 1800 / 1400 Nm
Longitudinal Feed: 0.01 – 50 mm/rev
Transversal Feed: up to 50 mm/rev
Tailstock Morse Taper: CM 5
Tailstock Spindle Stroke: 190 mm
Tailstock Spindle Diameter: 80 mm
Voltage: 3 x 400 V / 50 Hz
Total Power Required: 35 kVA
Noise Level: 80 dB(A)
3-Jaw Chuck Diameter: 300 mm
4-Jaw Chuck Diameter: 500 mm
4-Jaw Chuck Diameter: 560 mm
MULTIFIX Quick Change Tool System
Chip Conveyor
Tailstock
Set of Soft Jaws
Set of Hard Jaws
Set of Centres
Rotary Centre
Set of Tools
Set of Steel Holders
Set of Reducing Bushes
Lamp
Machine Dimensions: 3500 x 1800 x 1800 mm
Electrical Cabinet Dimensions: 1200 x 400 x 1400 mm
Weight: 5200 kg
